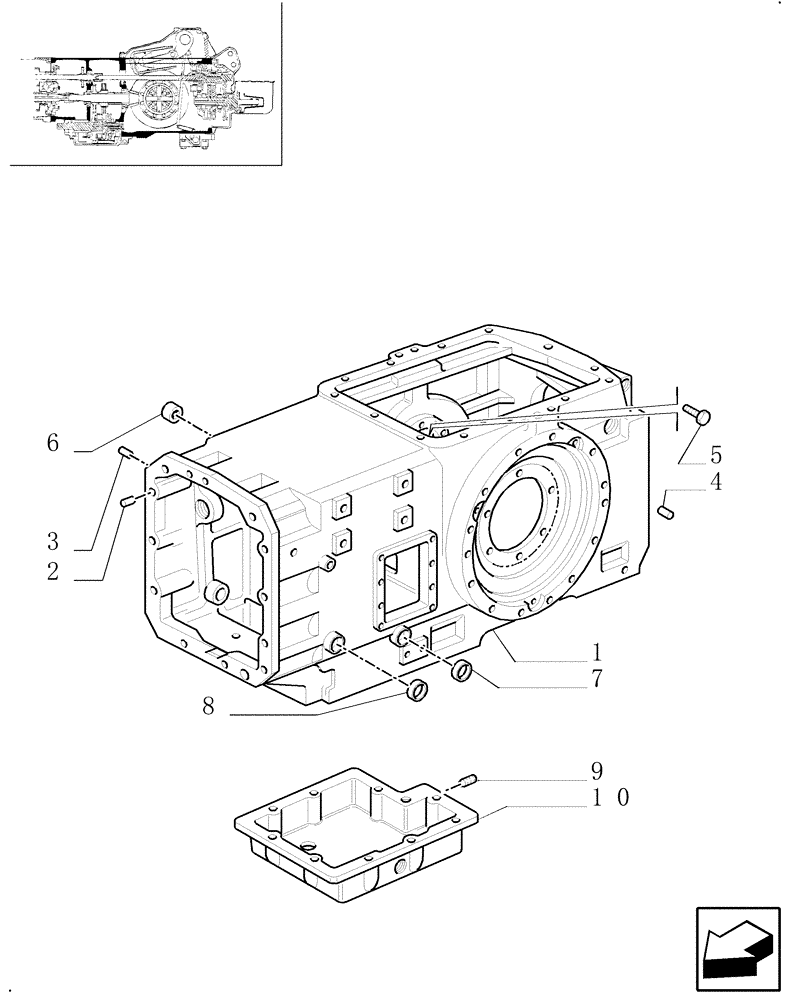

Запчасти Case IH MXM120 (1.21.0/03[02]) - (VAR.272) HI-LO 24X12 (SHUTTLE 40 KM/H) / HOUSING, REAR (03) - TRANSMISSION

1

47125398

TRANSMISSION HOUSING

1шт.

2

4985062

DOWEL,15mm OD x 25mm L

M15 x 25

4шт.

3

10837910

DOWEL

15 x 35

2шт.

4

5110200

DOWEL,12mm OD x 25mm L

M12 x 25

10шт.

5

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

6

5173164

BUSHING,12.5mm ID x 15mm OD x 10mm L

2шт.

7

14328501

PLUG,M16, Tapered

2шт.

8

14328701

PLUG,M20, Tapered

2шт.

9

10275550

PLUG

M12 x 1.25

1шт.

10

47127749

COVER

1шт.
