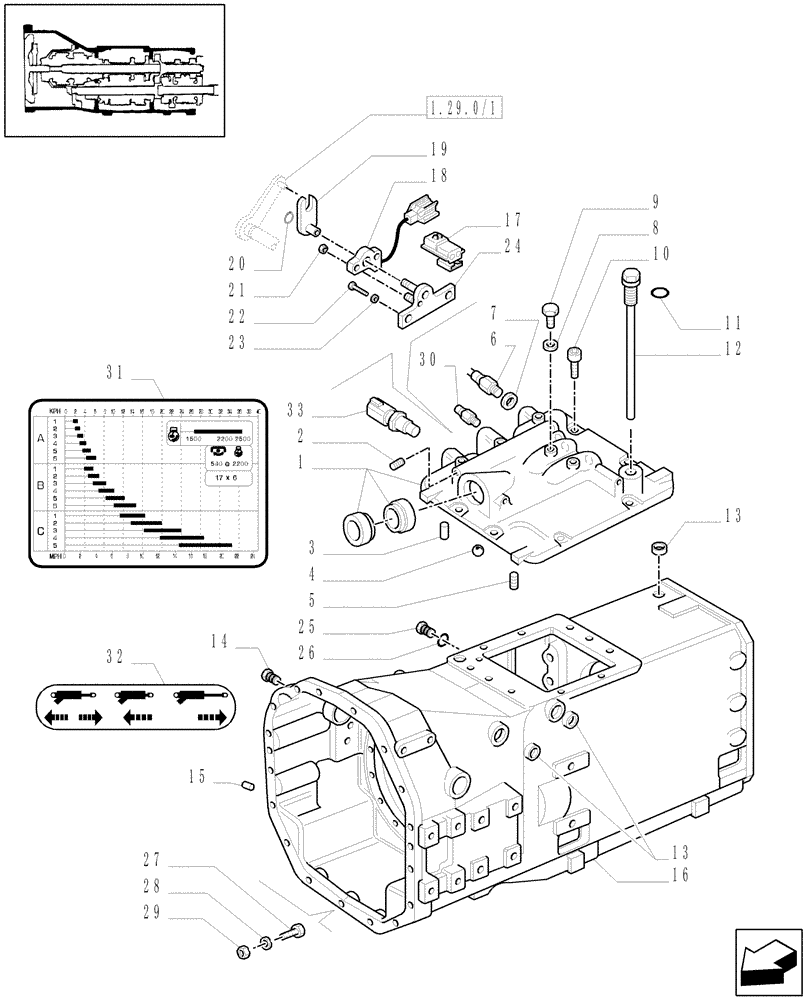

Запчасти Case IH MXM120 (1.21.0/03[01]) - (VAR.272) HI-LO 24X12 (SHUTTLE 40 KM/H) / TRANSMISSION HOUSING (03) - TRANSMISSION

1

5186788

COVER

Incl. Ref. 2, 3, 4, 5

1шт.

2

10269404

PLUG,M12 x 1.5

M12 x 1.5

6шт.

3

5153109

DOWEL,10mm OD x 15mm L

M10 x 15

2шт.

4

20063460

BALL,7.14mm OD, Gr 100

D = 7.144

2шт.

5

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

5шт.

6

5161047

PRESSURE SWITCH

3 Bar

2шт.

7

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

M10 x 18 x 1.5

2шт.

8

10260960

SEALING WASHER,M10.2 x 14 x 1.5

5шт.

9

11903011

PLUG,M10 x 1 x 11, Cl5.8

5шт.

10

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

1шт.

11

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

12

5171087

PLUG

1шт.

13

14328701

PLUG,M20, Tapered

4шт.

14

10300714

PLUG,M16 x 1.5 x 14

1шт.

15

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

16

47125545

GEARBOX

1шт.

17

82863269

WIRE CONNECTOR,Male

1шт.

18

89821734

POTENTIOMETER

1шт.

19

5169238

LEVER

1шт.

20

11087976

CIRCLIP,Ext., M8, BLO

1шт.

21

86625075

NUT,M4 x 0.7, Cl 8

1шт.

22

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

23

10516674

LOCK WASHER,M8

2шт.

24

5169179

BRACKET

1шт.

25

5167999

PLUG

1шт.

26

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

27

81862932

BOLT,Hex, 3/4" - 16 x 4 1/2", Gr 5

Cap, HH, G5, 3/4"-10 x 4-1/2"

2шт.

28

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

29

83927122

NUT,Hex, 3/4"-16, 0.665" High, G5

3/4"-16

2шт.

30

82028133

SENSOR,3/8"-18

Trans. Temp., Serial Range: -ACM276396

1шт.

31

82005612

DECAL

1шт.

32

82031697

DECAL

1шт.

33

87399368

TEMPERATURE SENDER

Trans. Temp., Serial Range: ACM276397-C5444

1шт.

33

87564690

TEMPERATURE SENDER,3/8" - 18

Trans. Temp., Start Serial: D5444

1шт.
