Запчасти Case IH MXM120 (1.21.0[01]) - HOUSING, GEARS (03) - TRANSMISSION

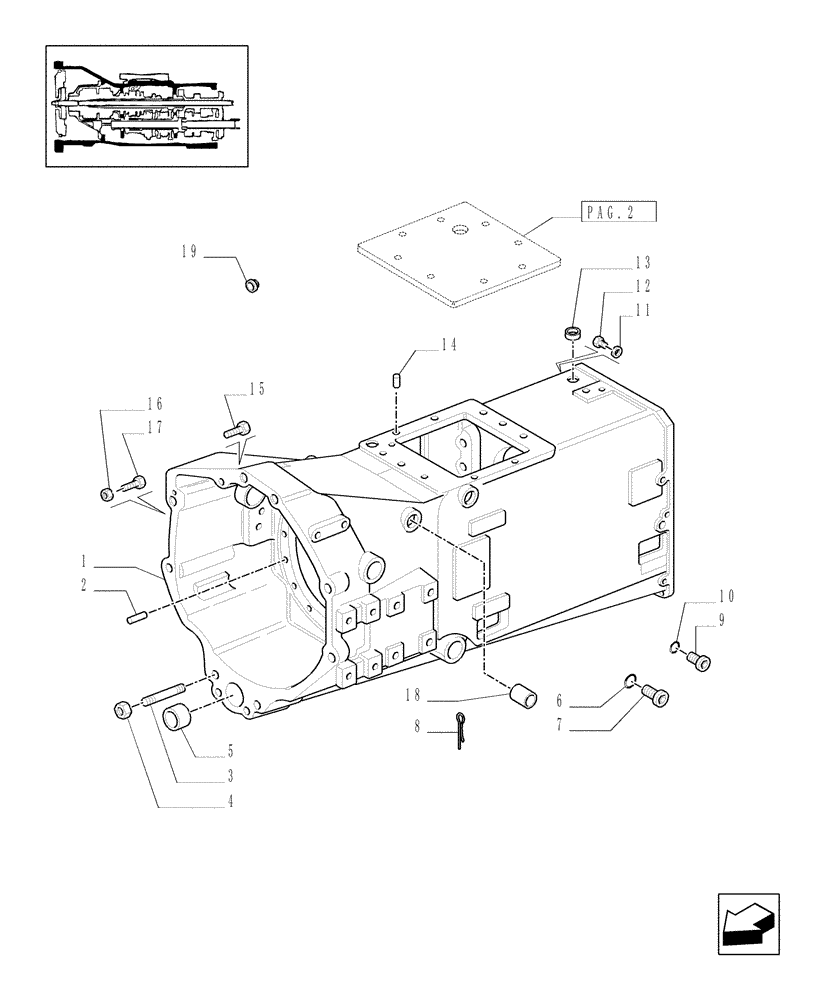

Схема запчастей Case IH MXM120 - (1.21.0[01]) - HOUSING, GEARS (03) - TRANSMISSION
13
3
11
pag.2
6
18
1
19
8
7
17
16
12
14
10
5
15
2
4
9

Артикул

Название

Примечание

Количество

710282034R

REMAN-TRANSMISSION

Remanufactured Transmission; Short Wheel Base - Semi Power Shift

1шт.

710282034C

CORE-TRANSMISSION

Return number

1шт.

710281074R

REMAN-TRANSMISSION

Remanufactured Transmission; Short Wheel Base - Full Power Shift

1шт.

710281074C

CORE-TRANSMISSION

Return number

1шт.

1

5183646

TRANSMISSION HOUSING

MXM120, MXM130, MXM140

1шт.

W/Mec. Trans. 20 x 16 (40 KPH)

1шт.

1

5188850

TRANSMISSION HOUSING

1шт.

2

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

3

5185876

STUD,3/4" - 10 x 4-1/2"

2шт.

4

80280954

NUT

3/4"-10

2шт.

5

5139075

PLUG,80.5mm

2WD

1шт.

6

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

7

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

2шт.

8

10798201

COTTER PIN,M6.3 x 32

1шт.

9

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

2шт.

10

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

11

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

1шт.

12

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

13

14328701

PLUG,M20, Tapered

1шт.

14

5153109

DOWEL,10mm OD x 15mm L

M10 x 15

2шт.

15

82895513

BOLT

3/4"-16 x 3-1/4"

2шт.

16

12164121

NUT,M16 x 1.5, Cl 10

4шт.

17

15981834

BOLT,Hex, M16 x 1.5 x 120mm, Cl 10.9

4шт.

18

5108835

BUSHING,30.06mm ID x 34mm OD x 40mm L

MXM120, MXM130, MXM140

2шт.

W/Mec. Trans. 20 x 16 (40 KPH)

1шт.

19

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.

19

82037172

PLUG

8шт.

Выбрано товаров: 27
