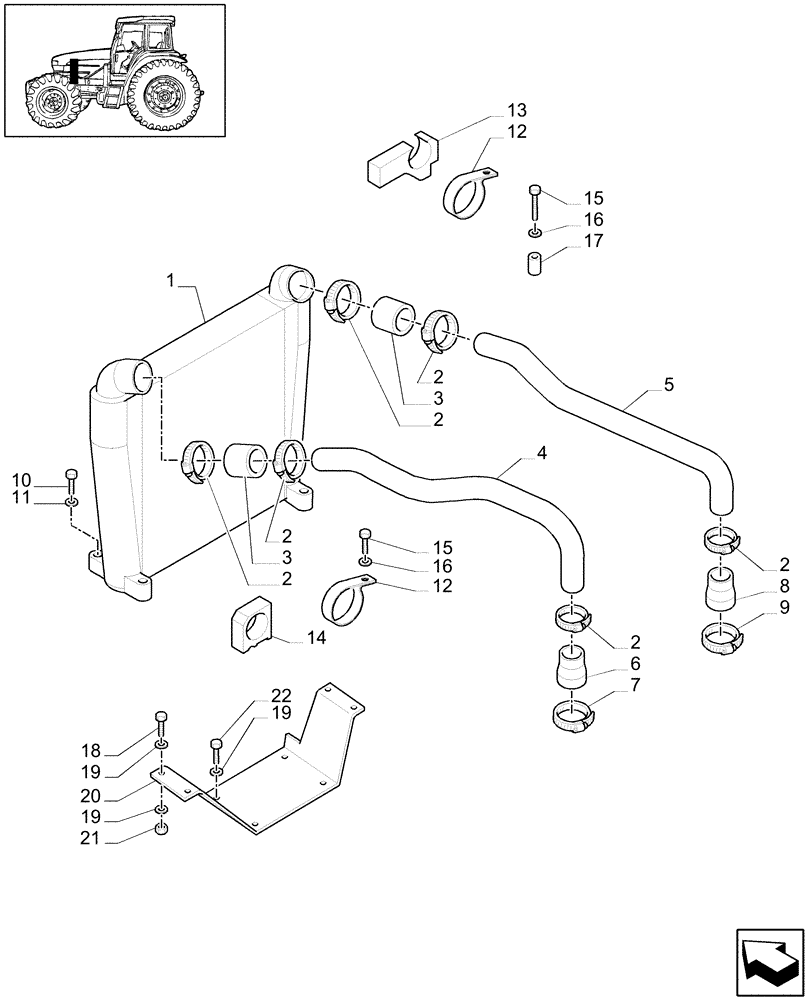

Запчасти Case IH MXM120 (1.19.6) - INTERCOOLER AND PIPES (02) - ENGINE EQUIPMENT

1

82028450

INTERCOOLER

1шт.

2

82036353

HOSE CLAMP,60 - 80mm X 14.5mm

D=60/80 mm

6шт.

3

87539189

FLEXIBLE HOSE,62.00 mm ID x 80.00 mm

2шт.

4

82027287

TUBE

1шт.

From Cooler to Turbo

1шт.

5

82027259

TUBE

1шт.

From Cooler to Intake Manifold

1шт.

6

82023401

FLEXIBLE HOSE,50.80 mm ID, 63.50 mm ID x 80.00 mm

1шт.

7

82036351

HOSE CLAMP,50 - 70mm X 14.5mm

1шт.

8

82039386

INTAKE AIR HOSE,63.50 mm ID, 76.00 mm ID x 92.00 mm, SAE J20R4 CLASS C

1шт.

9

82036354

HOSE CLAMP,70mm - 90mm

D=70/90 mm

1шт.

10

80120068

SCREW

M10 x 1.5 x 40

4шт.

11

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

4шт.

12

82035626

CLAMP,63.5mm ID, 10.3mm Bolt Hole, P Type

2шт.

13

82033550

SEAL

1шт.

14

82027499

SEAL

1шт.

15

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

16

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

17

82024562

SPACER,8.5mm ID x 18mm OD x 31.6mm L

1шт.

18

11107311

BOLT,Hex, M10 x 55mm, Cl 5.8

1шт.

19

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

12шт.

20

82031067

BRACKET

1шт.

21

100016

NUT,M10 x 1.5, Cl 8

4шт.

22

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.
