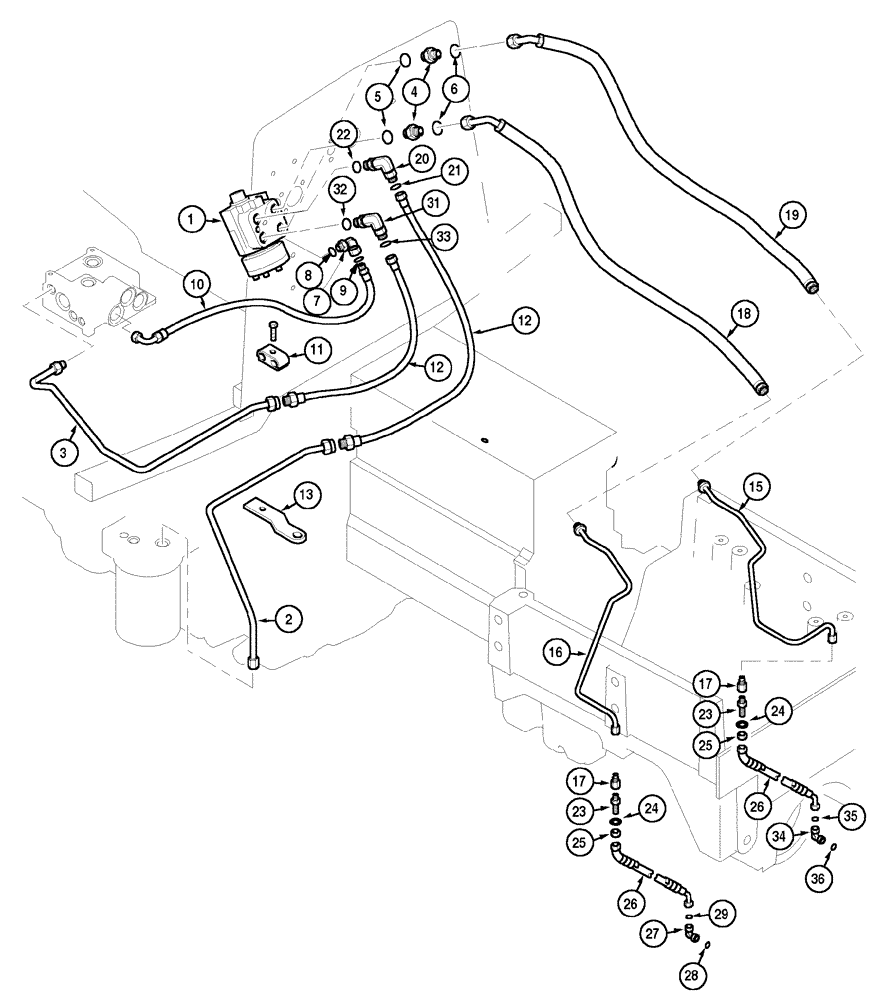

Запчасти Case IH MX90C (05-03) - STEERING PIPES (05) - STEERING

1

279426A1

PUMP, HYDRAULIC

danfoss, MX80C, Europe only

1шт.

1

366440A1

PUMP, HYDRAULIC

MX80C, 30 km/h, N.A. only

1шт.

1

223936A2

VALVE, CONTROL

danfoss, MX90C, MX100C, Europe only

1шт.

1

366438A1

STEERING VALVE

MX90C, MX100C, 30 km/h, N.A. only

1шт.

1

141902A1

VALVE, CONTROL

eaton, MX90C, MX100C, 30 km/h, N.A. only

1шт.

1343658C3

SEAL KIT

eaton, use with 141902A1

1шт.

319548A1

SEAL KIT

use with 223936A2, 279426A1

1шт.

2

300233A2

PIPE

return

1шт.

3

300234A1

PIPE

supply

1шт.

4

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 5, 6

2шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Includes: 8, 9

1шт.

8

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

10

307866A1

HOSE,6.35 mm ID x 960.00 mm

1шт.

11

T103135

CLAMP

1шт.

12

300231A2

HOSE

2шт.

13

308433A1

SUPPORT

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

318259A2

HYD TUBE

left

1шт.

16

318260A1

HYD TUBE

right

1шт.

17

99713C1

FITTING

2шт.

18

330602A1

HOSE

right, MX80C, MX100C

1шт.

18

318262A1

HOSE

right

1шт.

19

318261A1

HOSE

left

1шт.

20

700-381

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes: 21, 22

1шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

22

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

23

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16 fl x blkhd fl

2шт.

24

93-21065

LOCK WASHER,Int Tooth, 5/8"

2шт.

25

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

26

294832A1

HOSE

483 mm (19 in)

2шт.

27

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes: 28, 29

1шт.

28

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

29

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Includes: 30

1шт.

31

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 32, 33

1шт.

32

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

34

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Includes: 35, 36

1шт.

35

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

36

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
