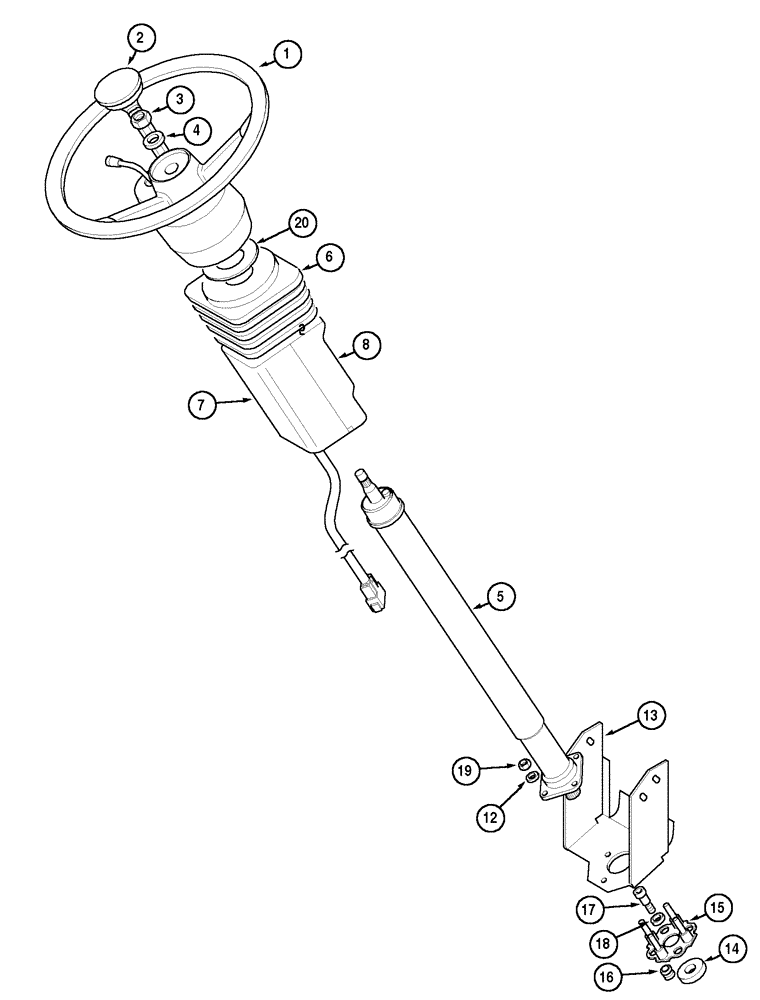

Запчасти Case IH MX90C (05-01) - STEERING WHEEL AND COLUMN, FIXED (05) - STEERING

1

224818A3

STEERING WHEEL

1шт.

2

224819A2

CAP

1шт.

3

825-11414

NUT,M14 x 1.5, Cl 8

1шт.

4

895-11014

WASHER,M14 x 28 x 2.5

15.5 x 28 x 2.5 mm

1шт.

188832A5

STEERING COLUMN

Consists Of: 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

COLUMN

1шт.

6

NSS

NOT SOLD SEPARAT

BOOT

1шт.

7

NSS

NOT SOLD SEPARAT

COVER, bottom

1шт.

8

NSS

NOT SOLD SEPARAT

COVER, top

1шт.

13

193345A3

SUPPORT

1шт.

14

257132A1

SEAL,25mm ID x 82mm OD x 15mm Thk

1шт.

15

256390A2

SUPPORT ASSY.

1шт.

16

319919A1

GROMMET

4шт.

17

561-702

HEX SOC SCREW,M10 x 34.4, 13 x 16mm shldr, Cl 12.9

M10 x 13; 12.9

4шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

20

1977448C2

WASHER

1шт.

3221520R1

CAP

not illustrated

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

8шт.
