Запчасти Case IH MX90C (04-26) - REAR LIGHTS - CAB ROOF, WORKLIGHTS, NUMBER PLATE LIGHT (04) - ELECTRICAL SYSTEMS

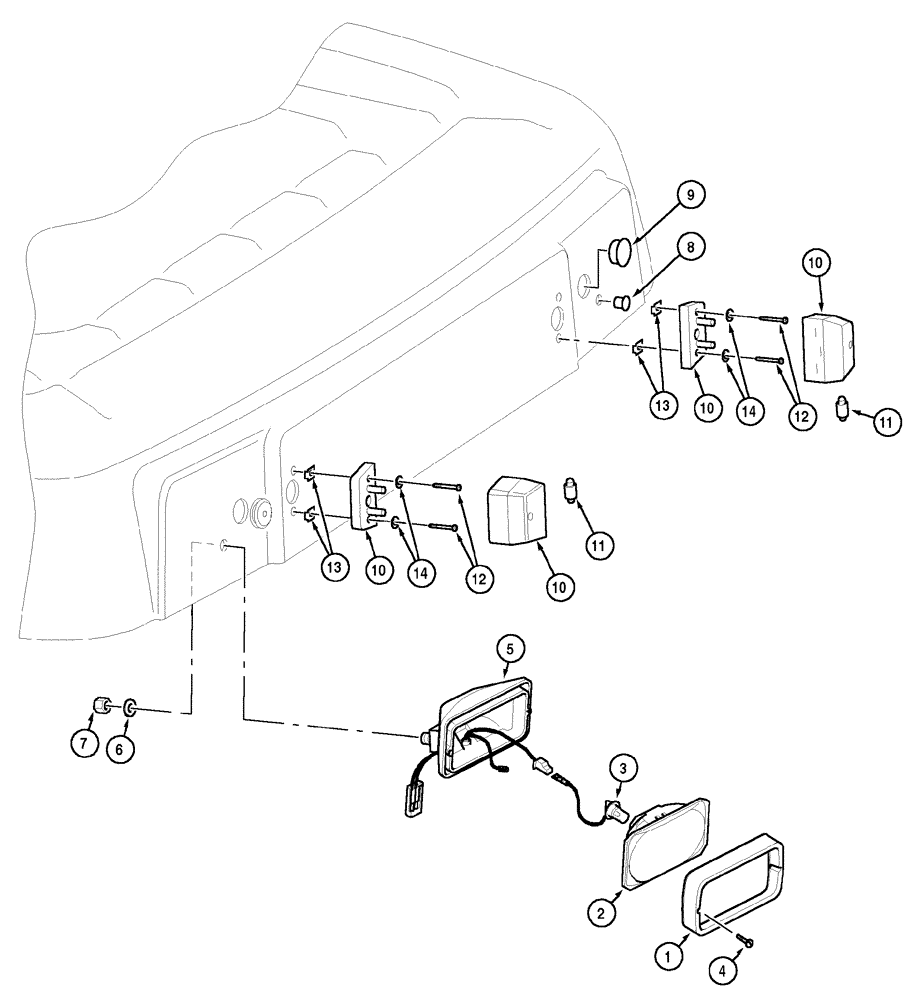

Схема запчастей Case IH MX90C - (04-26) - REAR LIGHTS - CAB ROOF, WORKLIGHTS, NUMBER PLATE LIGHT (04) - ELECTRICAL SYSTEMS
1
10
10
14
12
11
13
14
10
7
2
8
13
10
11
6
3
5
4
12
9

Артикул

Название

Примечание

Количество

178345A1

LAMP, WORK,Halogen, 12V, 55W, Clear

LIGHT, WORK two plane, consists of: 1 - 5

2шт.

1

1964806C1

BEZEL

1шт.

2

276498A1

LENS

1шт.

3

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

4

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

2шт.

5

NSS

NOT SOLD SEPARAT

BASE

1шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

353-425

PLUG,0.437 Hole OD

7/16 in, in place of 178345A1

2шт.

9

353-411

PLUG,Dome, 1.000" hole, Nylon

In place of 178345A1

2шт.

10

248700A1

LIGHT

Europe only, Includes: 11

2шт.

11

E35556

BULB,12V, 10W

1шт.

12

260-14524

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

4шт.

13

228004A1

NUT

4шт.

14

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

Выбрано товаров: 15
