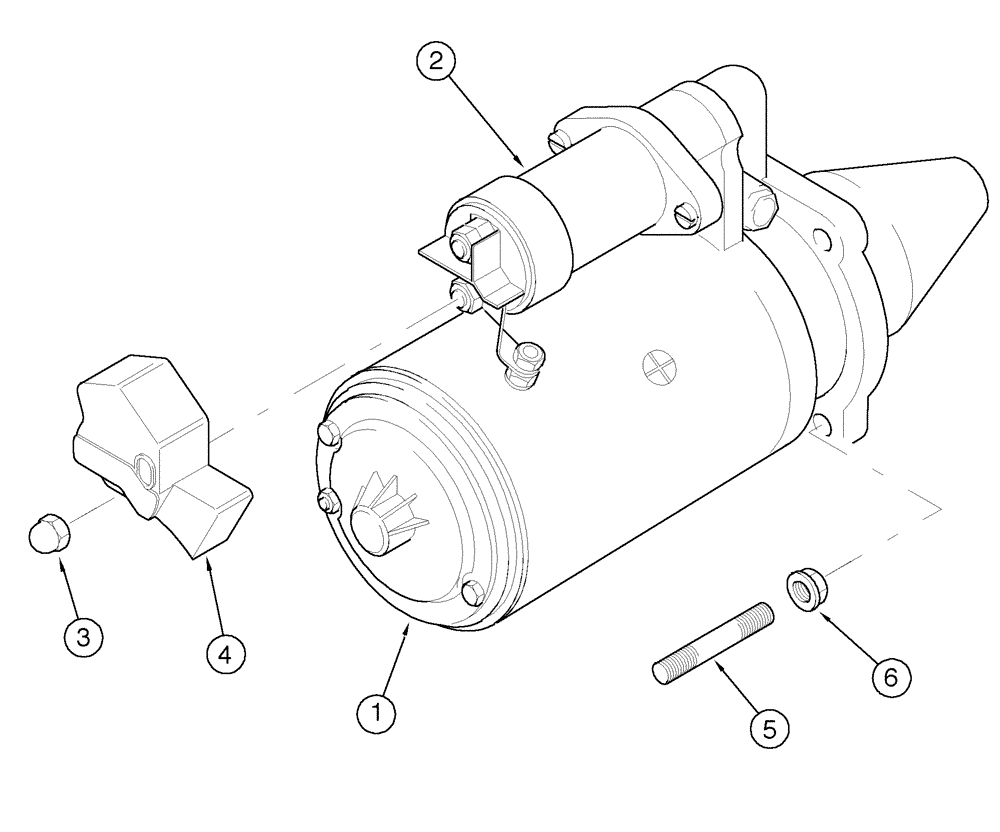

Запчасти Case IH MX90C (04-17) - STARTER MOTOR (04) - ELECTRICAL SYSTEMS

1

388187A2

STARTING MOTOR

Iskra 3.0 Kw

1шт.

6106496M91

STARTING MOTOR

STARTING MOTOR, 12v 3.0 kw

1шт.

6106496M91R

REMAN-STARTER

Remanufactured Starting Motor

1шт.

6106496M91C

CORE-STARTER

Return Part Number, Starting Motor

1шт.

1

234987A1

STARTING MOTOR

Magnetti Marrelli 2.8 Kw

1шт.

1

6106496M92R

REMAN-STARTER

Starter

1шт.

1

6106496M92C

CORE-STARTER

Return Part Number

1шт.

2

395366A1

SOLENOID

Iskra Starter Motor

1шт.

2

340954A1

SOLENOID

Magnetti Marrelli Starter Motor

1шт.

3

395378A1

NUT

1шт.

4

395377A1

COVER

1шт.

5

217984A1

STUD

3шт.

6

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

3шт.

.

The Following Parts Are Not Illustrated

1шт.

395362A1

SUPPORT

1шт.

395363A1

COVER

1шт.

395367A1

LEVER

1шт.

395368A1

KIT

1шт.

395369A1

ARMATURE

1шт.

395370A1

BRUSH HOLDER

HOLDER, BRUSH

1шт.

395371A1

BRUSH ASSY.

1шт.

395372A1

KIT

1шт.

395373A1

STATOR

1шт.

395374A1

DRIVE ASSY.

1шт.

395375A1

COVER

1шт.

395376A1

PACKAGE, REPAIR

1шт.
