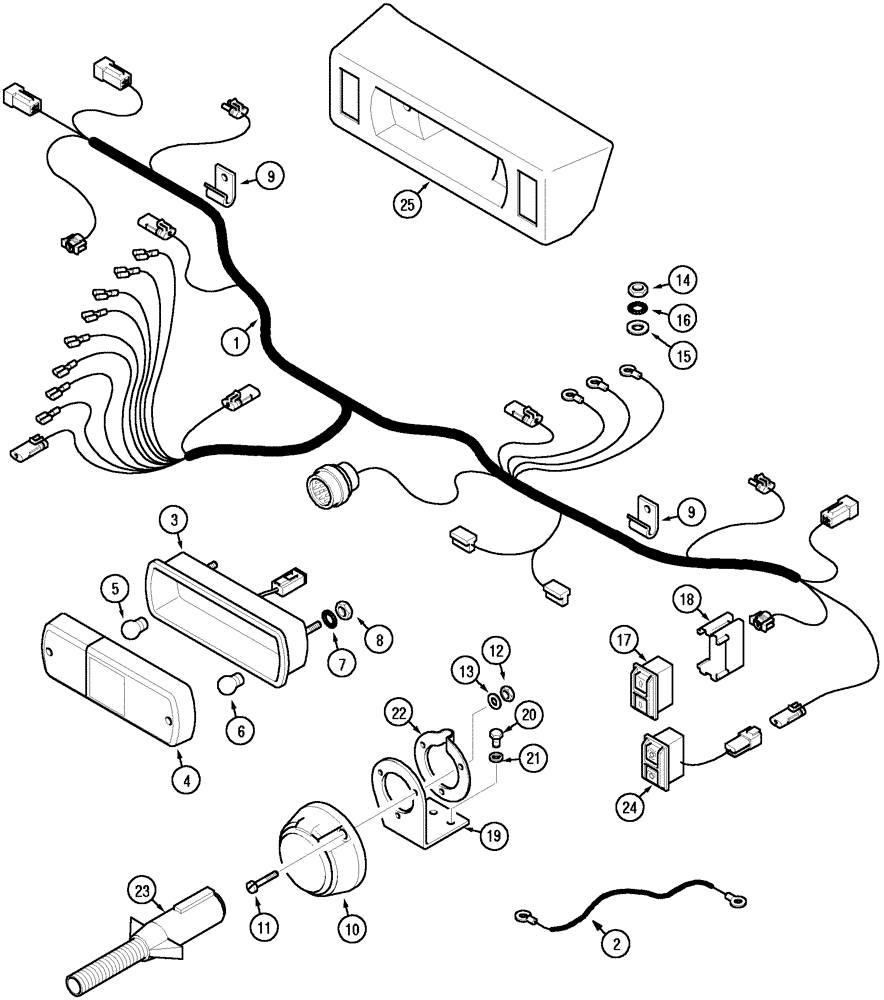

Запчасти Case IH MX90C (04-09) - HARNESS REAR FENDER, EUROPE ONLY (04) - ELECTRICAL SYSTEMS

1

341267A2

HARNESS

1шт.

2

192935A1

CABLE

1шт.

3

177239A2

LAMP, TAIL

LIGHT, TAIL combination, right, consists of: 4 - 6

1шт.

3

259816A1

LAMP, TAIL,12V, 21W, Amber/Red

LIGHT, TAIL combination, left, consists of: 4 - 6

1шт.

4

187140A1

LENS

1шт.

5

1094366R1

BULB

12V, 21W, turn signal

1шт.

6

3131234R1

BULB,P25-2, 12V, 5W

Stop - Tail Lights

1шт.

7

893-11006

LOCK WASHER,Ext Tooth, M6

4шт.

8

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

9

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

10

230228A1

ELEC CONNECTOR,7 Pole

1шт.

11

931858R1

SCREW,M5 x 0.8 x 35mm, Cl 5.8

M5 x 35

3шт.

12

824-1405

NUT,M5, Cl 5

3шт.

13

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

3шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

16

892-11008

LOCK WASHER,8mm ID

1шт.

17

220415A2

SWITCH ASSY

hitch, remote control

2шт.

18

220416A2

CLAMP

2шт.

19

1961336C2

SUPPORT

connector, 7 pin

1шт.

20

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

22

3131909R1

CAP

1шт.

23

121646C1

TERMINAL CONNECTOR,Female

7 pin

1шт.

24

336548A1

SWITCH ASSY

1шт.

25

325843A1

HOUSING

left hand

1шт.

25

335963A1

HOUSING

1шт.
