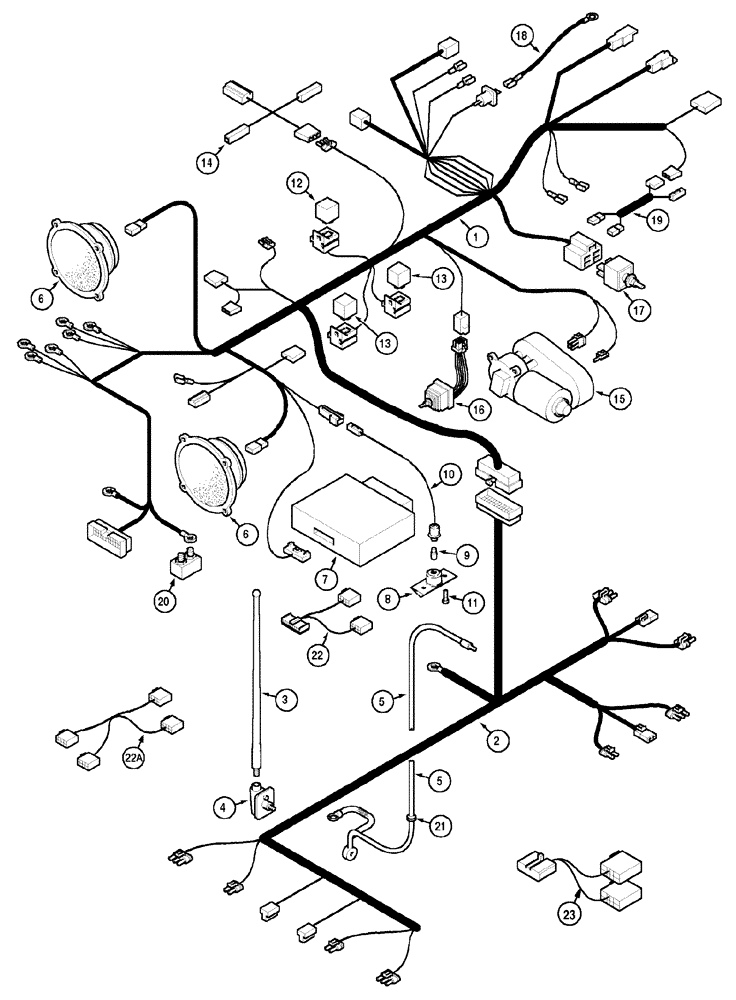

Запчасти Case IH MX90C (04-05) - HARNESS CAB ROOF (04) - ELECTRICAL SYSTEMS

1

296736A1

HARNESS

inner

1шт.

2

229047A2

HARNESS

outer

1шт.

197745A1

ANTENNA

410 mm, consists of: 3, 4

1шт.

3

198960A1

ANTENNA

360 mm

1шт.

4

NSS

NOT SOLD SEPARAT

BODY

1шт.

5

198962A1

CABLE

750 mm; Antenna w/Ground Strap

1шт.

5

1983247C1

CABLE

1500 mm

1шт.

6

182721A2

SPEAKER

5-1/2

2шт.

7

366631A2

RADIO

Delco, N.A. only

1шт.

7

355623A2

RADIO

Delco, cassette, N.A. only

1шт.

7

141950A2

RADIO

N.A. only audio vox

1шт.

7

141951A2

RADIO

cassette, N.A. only audio vox

1шт.

7

284761A1

RADIO

Philips, cassette, Europe only

1шт.

7

284762A1

RADIO

Philips, cassette, Europe only RDS

1шт.

8

83882C91

LAMP

Includes: 9 ,10

1шт.

9

D71346

TAIL LAMP,12V

No. 168

1шт.

10

107329C1

WIRE HARNESS

1шт.

11

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

2шт.

12

384114A1

RELAY

20 amp, control

1шт.

13

384114A1

RELAY

20 amp, blower

2шт.

14

254919A1

HARNESS

dome, light

1шт.

15

REF

INSTRUCTION

MOTOR wiper, see Page(s) 4-81,83

1шт.

16

REF

INSTRUCTION

SWITCH, windshield wiper front, see Page(s) 9-77

1шт.

17

168822C2

SWITCH

blower, 1-1/16 in square, If Equipped

1шт.

17

403129A1

BLOWER SWITCH

blower, 1-1/2 in square, If Equipped

1шт.

18

236864A2

HARNESS,500mm L

diode

1шт.

19

254920A2

HARNESS

A post, front work light, Europe only

1шт.

19

296484A1

HARNESS

A post, front work light, N.A. only

1шт.

20

92056C1

CIRCUIT-BREAKER

40 amp

1шт.

21

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

1 in

1шт.

22

296470A1

HARNESS

adaptor, N.A. only audio vox

1шт.

22

296455A1

HARNESS

adaptor, N.A. only Delco

1шт.

22a

379465A1

WIRE HARNESS

adaptor, Delco

1шт.

23

366526A1

WIRE HARNESS

adaptor, N.A. only Delco, use with YAXAKI

1шт.

24

296456A2

CABLE

not illustrated

1шт.

25

893-11008

LOCK WASHER,Ext Tooth, M8

Not Illustrated

2шт.
