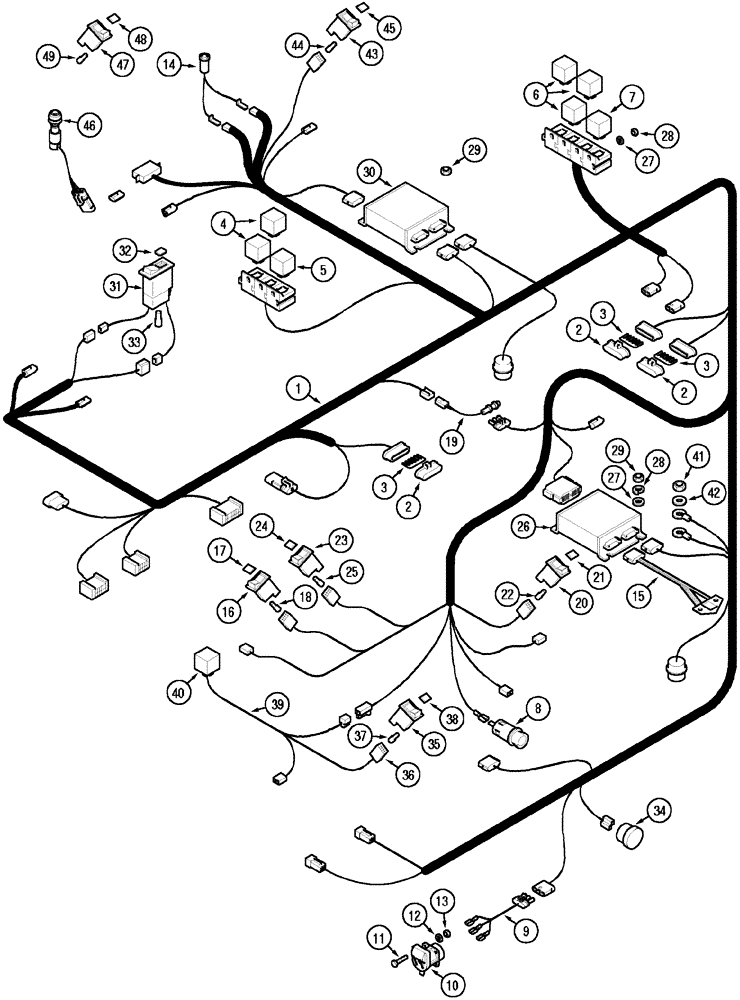

Запчасти Case IH MX90C (04-04) - HARNESS CONTROL CONSOLE (04) - ELECTRICAL SYSTEMS

1

369948A3

HARNESS

16 speed, wheel slip, 4WD, diff. lock, draft control, Includes: 2, 3, 3A

1шт.

2

187308A1

CAP

3шт.

3

187309A1

BAR

6 pin

1шт.

3a

194976A1

BAR

3 pin

2шт.

4

384114A1

RELAY

20 amp, solenoid, powershift

2шт.

5

384114A1

RELAY

20 amp, 4WD

1шт.

6

384114A1

RELAY

20 amp, brake

3шт.

7

384114A1

RELAY

20 amp, diff. lock

1шт.

8

1964773C1

CIGAR LIGHTER

12 V

1шт.

9

227740A2

HARNESS

Europe only

1шт.

9

227739A2

POWER SOCKET

N.A. only

1шт.

10

1533880C1

SOCKET/RECEPTACLE

Europe only

1шт.

11

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

4шт.

12

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

4шт.

13

824-1403

NUT,M3, Cl 5

4шт.

14

183696A1

INDICATOR

1шт.

15

187614A3

DISPLAY

1шт.

16

276724A1

SWITCH

diff. lock, Europe only, Includes: 17, 18

1шт.

17

1964650C1

SYMBOLS

SYMBOL

1шт.

18

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

19

191126A1

LIMIT SWITCH

4th speed, lockout

1шт.

194216A1

SWITCH

wheel slip, consists of: 20, 21, 22

1шт.

20

91956C1

SWITCH ASSY

1шт.

21

194235A1

SYMBOLS

SYMBOL

1шт.

22

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

276723A1

SWITCH

4WD, Europe only, consists of: 23, 24, 25

1шт.

23

1983638C1

FLASHER SWITCH

1шт.

24

1964651C1

SYMBOLS

SYMBOL

1шт.

25

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

194107A1

SWITCH ASSY

4WD, N.A. only, consists of: 23A, 24, 25

1шт.

23a

190524A1

SWITCH

1шт.

24

1964651C1

SYMBOLS

SYMBOL

1шт.

25

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

26

336138A1

MODULE

wheel slip, 4WD, diff. lock, draft control

1шт.

26

336138A1R

REMAN ELECT CONTROL

wheel slip, 4WD, diff. lock, draft control

1шт.

26

336138A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

26

390473A1

CONTROL

Position, De-luxe. Requires Programming.

1шт.

26

390473A1R

REMAN-MODULE

Position, De-luxe. Requires Programming.

1шт.

26

390473A1C

CORE-MODULE

Return Number

1шт.

27

892-11005

LOCK WASHER,M5

4шт.

28

824-1405

NUT,M5, Cl 5

4шт.

29

825-5146

SERRATED NUT,M6, Flg Ser

3шт.

30

325377A2

CONTROL UNIT

P.T.O., forward - neutral - reverse, flash

1шт.

30

325377A2R

REMAN-PRINTED CIRCUI

P.T.O., forward - neutral - reverse, flash

1шт.

30

325377A2C

CORE-PRINTED CIRCUIT

Return Number

1шт.

30

348759A2

MODULE

P.T.O., auto

1шт.

31

194214A3

SWITCH

hitch control, consists of: 32, 33

1шт.

32

190523A2

SYMBOLS

SYMBOL

1шт.

33

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

34

1546441C1

BUZZER

park brake

1шт.

236582A1

SWITCH ASSY

front, P.T.O., consists of: 35 - 38

1шт.

35

1964649C1

SWITCH ASSY

with latch, front P.T.O., Includes: 36, 37

1шт.

36

134608A1

LAMP SOCKET

1шт.

37

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

38

1983273C1

SYMBOLS

SYMBOL

1шт.

39

185209A1

HARNESS

front P.T.O.

1шт.

40

384114A1

RELAY

20 amp, front P.T.O.

1шт.

41

829-1406

NUT,Hex, M6 x 1, Cl 10.9

Ground

1шт.

42

892-11006

LOCK WASHER,M6

Ground

1шт.

297427A1

SWITCH

4th bank, Includes: 43 - 45

1шт.

43

297426A1

SWITCH

1шт.

44

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

45

NSS

NOT SOLD SEPARAT

LENS

1шт.

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

296647A1

HARNESS

implement, status, not illustrated

1шт.

46

353862A1

SWITCH

P.T.O.

1шт.

337515A1

TOGGLE SWITCH

P.T.O., consists of: 37, 38, 39

1шт.

47

91956C1

SWITCH ASSY

1шт.

48

337531A1

DECAL

SYMBOL

1шт.

49

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.
