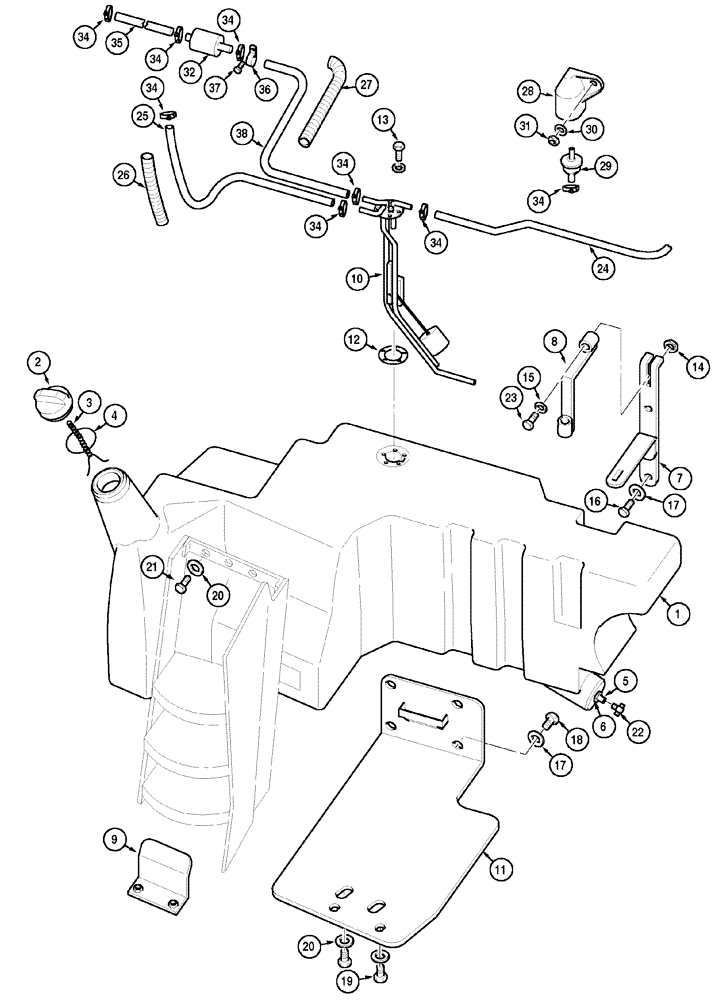

Запчасти Case IH MX90C (03-09) - FUEL TANK AND SUPPORT (03) - FUEL SYSTEM

1

276003A3

FUEL TANK

196 L, Includes: 1 - 6

1шт.

2

277106A1

LOCKABLE FUEL CAP

with key, with O-ring

1шт.

3

278374A1

CHAIN (AG)

1шт.

4

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

5

251361A1

FITTING

1шт.

6

1251791C1

JAM NUT,3/4" - 16 LH Thread

1шт.

7

278922A1

SUPPORT

rear

1шт.

8

278849A1

SUPPORT

front

1шт.

9

239394A4

SUPPORT

1шт.

10

281126A2

FUEL GAUGE

1шт.

11

278168A1

SUPPORT

front

1шт.

12

528359R4

GASKET,3.05mm Thk

1шт.

13

187515A1

SCREW

5шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

2шт.

17

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

18

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

21

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

22

217-92

COCK

1/4

1шт.

23

811-8060

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 60mm, Cl 8.8

2шт.

24

293949A1

FUEL HOSE

vent, 1200 mm, cut from 194882A1

1шт.

25

183283A2

FUEL HOSE

return, 1003 mm, cut from 194882A1

1шт.

26

239716A1

FUEL HOSE,16.66 mm ID x 915.00 mm

1шт.

27

239716A1

FUEL HOSE,16.66 mm ID x 915.00 mm

1шт.

28

186814A1

CAP

1шт.

29

T103750

BREATHER

1шт.

194882A1

FUEL HOSE,0.38" ID x 25.00' Bulk, SAE 30R7

1шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

32

D139225

FILTER, FUEL

1шт.

34

1348264C1

HOSE CLAMP

8шт.

35

253096A1

FUEL HOSE

supply, cut from 194882A1

1шт.

36

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

37

844-10016

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

1шт.

38

183283A2

FUEL HOSE

supply rear

1шт.

194882A1

FUEL HOSE,0.38" ID x 25.00' Bulk, SAE 30R7

1шт.

19

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

20

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

7шт.
