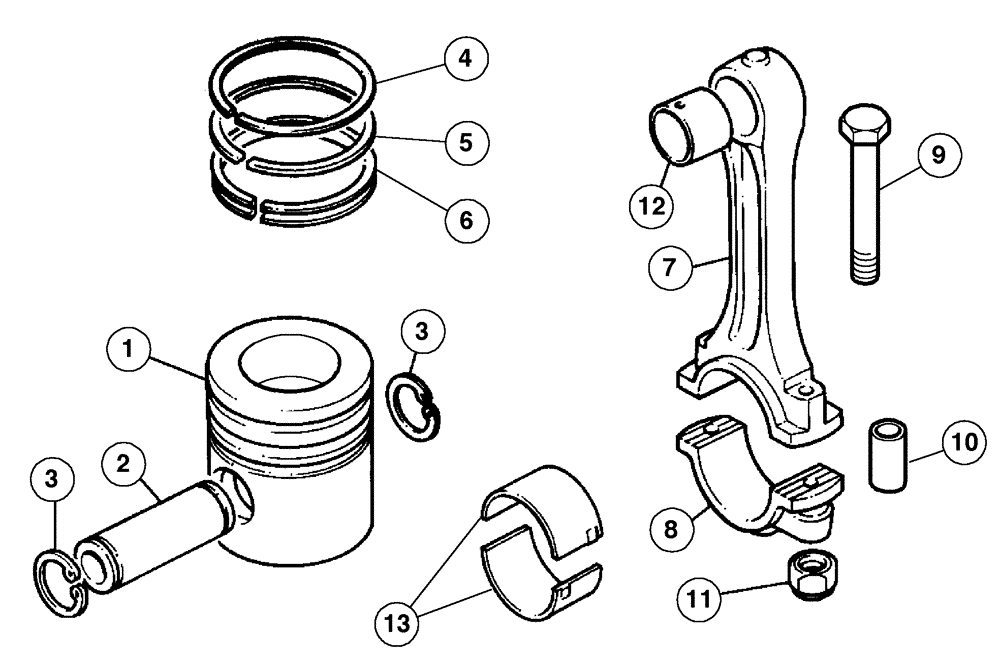

Запчасти Case IH MX90C (02-31) - PISTONS AND CONNECTING RODS (02) - ENGINE

314399A1

PISTON ASSY.

high

4шт.

314399A1

PISTON ASSY.

low, consists of: 1, 2, 3

4шт.

1

NSS

NOT SOLD SEPARAT

PISTON

1шт.

2

NSS

NOT SOLD SEPARAT

PIN

1шт.

3

292992A1

RETAINER

2шт.

293181A1

PISTON RING SET

consists of: 4, 5, 6

4шт.

4

NSS

NOT SOLD SEPARAT

RING

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

NSS

NOT SOLD SEPARAT

RING

1шт.

321638A1

ROD, CONNECTING

stamped H, consists of: 7 - 12

4шт.

321639A1

ROD, CONNECTING

stamped J, consists of: 7 - 12

4шт.

321640A1

ROD, CONNECTING

stamped K, consists of: 7 - 12

4шт.

321642A1

LINK CONROD

stamped L, consists of: 7 - 12

4шт.

7

NSS

NOT SOLD SEPARAT

ROD

1шт.

8

NSS

NOT SOLD SEPARAT

CAP

1шт.

9

311752A1

BOLT

2шт.

10

293126A1

DOWEL

2шт.

11

218299A1

NUT

2шт.

12

293493A1

BUSHING

1шт.

13

218627A1

BEARING SET

of 4, standard

1шт.

13

218628A1

BEARING SET

of 4, undersize 0.25 mm

1шт.

13

218629A1

BEARING SET

of 4, undersize 0.50 mm

1шт.

13

218630A1

BEARING SET

of 4, undersize 0.75 mm

1шт.
