Запчасти Case IH MX90C (02-29) - CRANKSHAFT (02) - ENGINE

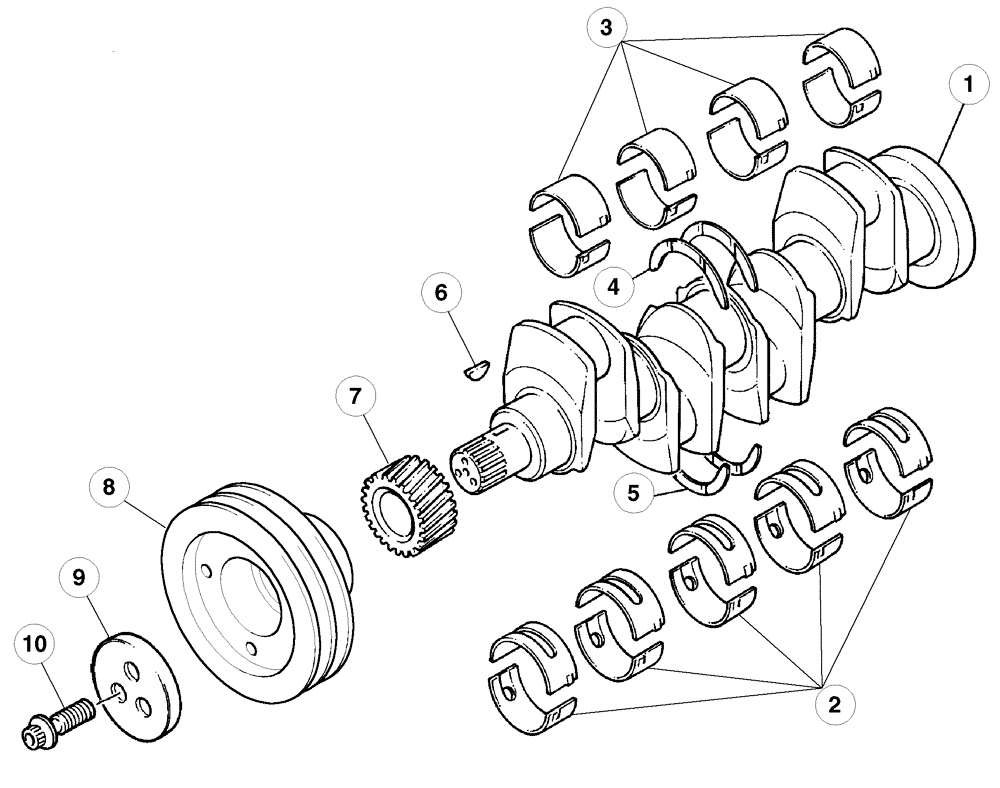

Схема запчастей Case IH MX90C - (02-29) - CRANKSHAFT (02) - ENGINE
5
4
8
2
9
1
7
6
10
3

Артикул

Название

Примечание

Количество

393596A1

CRANKSHAFT

consists of: 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

2

3118150R1

BEARING SET

standard, set of 5

1шт.

2

3118151R1

BEARING SET

undersize 0.25 mm, set of 5

1шт.

2

3118152R1

BEARING SET

undersize 0.50 mm, set of 5

1шт.

2

3118153R1

BEARING SET

undersize 0.75 mm, set of 5

1шт.

3

218627A1

BEARING SET

standard, set of 4, see Figure 2-31

1шт.

4

218292A1

THRUST WASHER

standard

2шт.

4

F62448

WASHER, THRUST

oversize 0.19 mm

2шт.

5

218294A1

THRUST WASHER

standard

2шт.

5

F62450

WASHER, THRUST

oversize 0.19 mm

2шт.

6

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

7

3118217R1

PINION

1шт.

8

293027A1

PULLEY

1шт.

9

281575A1

WASHER, THRUST

1шт.

10

281576A1

SCREW

3шт.

Выбрано товаров: 16
