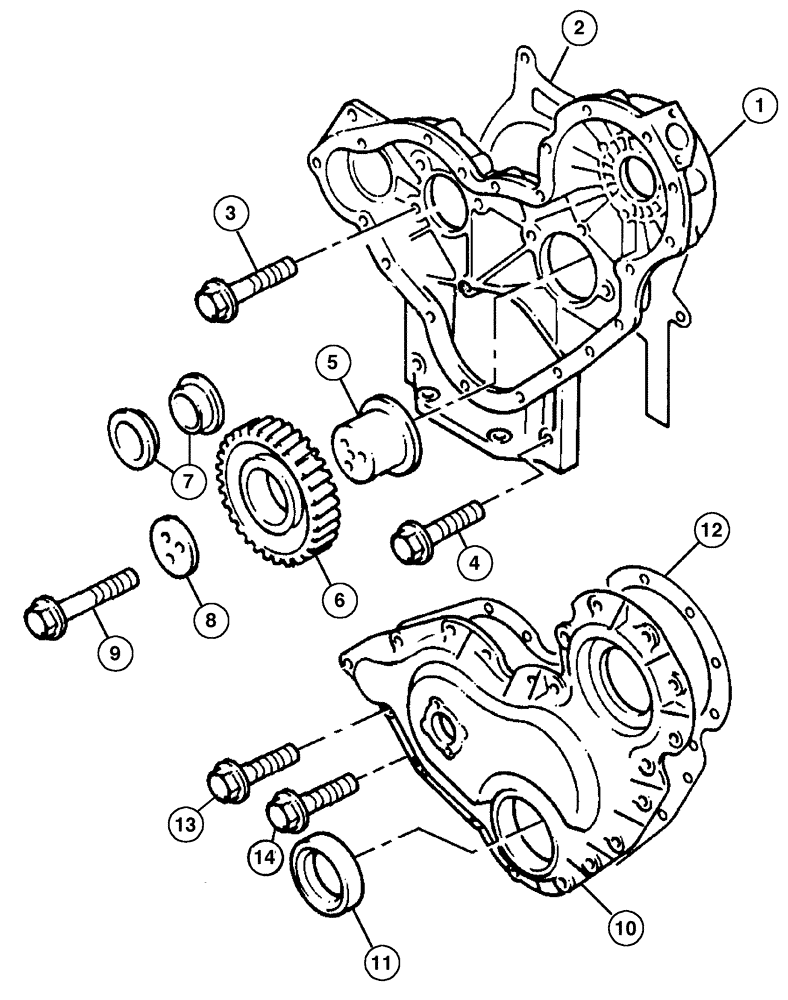

Запчасти Case IH MX90C (02-18) - FRONT GEAR COVER (02) - ENGINE

1

370414A1

HOUSING

1шт.

2

291964A1

GASKET

1шт.

3

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

7шт.

4

218021A1

SCREW

2шт.

5

218369A1

HUB

1шт.

6

218370A1

PINION

Includes: 7

1шт.

7

F62671

BUSHING

1шт.

8

281585A1

LARGE PLATE

PLATE, LARGE

1шт.

9

218373A1

SCREW

3шт.

10

311158A1

COVER

Includes: 11

1шт.

11

218375A1

SEAL

1шт.

12

310721A1

GASKET

1шт.

13

218021A1

SCREW

14шт.

14

218559A1

SCREW

M8 x 60; 8.8

4шт.
