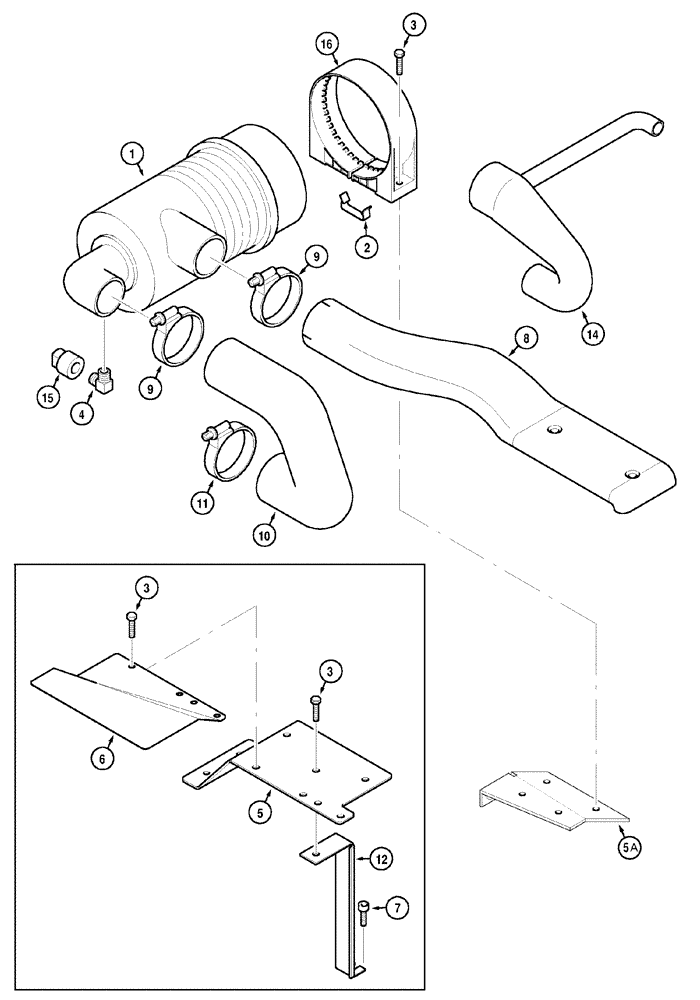

Запчасти Case IH MX90C (02-15) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

1

REF

INSTRUCTION

air cleaner assy, see Figures 2-13 and 2 -14

1шт.

2

281083A1

CLIP,ELECTRICAL

2шт.

3

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

9шт.

4

217-1227

ELBOW,90 Degree, 1/8"-27 Male

1шт.

5

298169A2

SUPPORT

1шт.

5a

380286A2

SUPPORT

1шт.

6

294853A2

PROTECTION PLATE

turbocharger

1шт.

7

864-10016

HEX SOC SCREW,M10 x 16mm, Cl 8.8

1шт.

8

298167A3

DUCT

inlet

1шт.

367398A1

SEAL

not illustrated

1шт.

8

243182A2

DUCT

inlet, with compressor

1шт.

9

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

2шт.

10

298168A3

INTAKE AIR HOSE,54.00 mm ID, 70.00 mm ID, 91.00 mm ID

1шт.

11

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2-1/16 - 3

1шт.

12

301187A1

SUPPORT

1шт.

14

308021A2

LARGE HOSE

HOSE,LARGE with compressor

1шт.

15

292740A1

RESTRICTION SWITCH

restrictor

1шт.

16

226500A1

SUPPORT

1шт.
