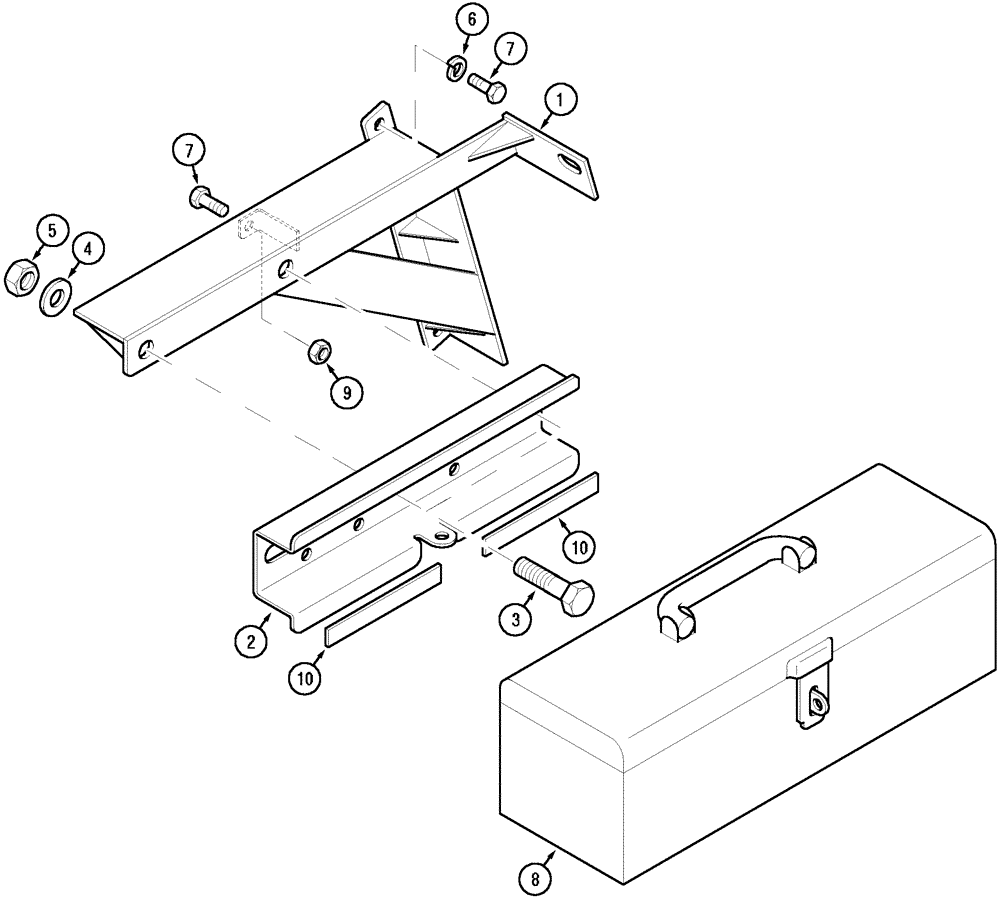

Запчасти Case IH MX90C (09-85) - TOOL BOX, WIDE FENDERS (09) - CHASSIS

1

317940A2

SUPPORT

1шт.

2

315850A1

SUPPORT

1шт.

3

614-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

2шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

5

832-10416

NUT,M16 x 2, Cl 8

2шт.

6

892-11008

LOCK WASHER,8mm ID

2шт.

7

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

8

A181436

TOOL BOX

serial No. - JJE1052313

1шт.

8

355487A1

BOX, TOOL

serial No. JJE1052314 -

1шт.

9

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

10

326577A1

SEAL

2шт.
