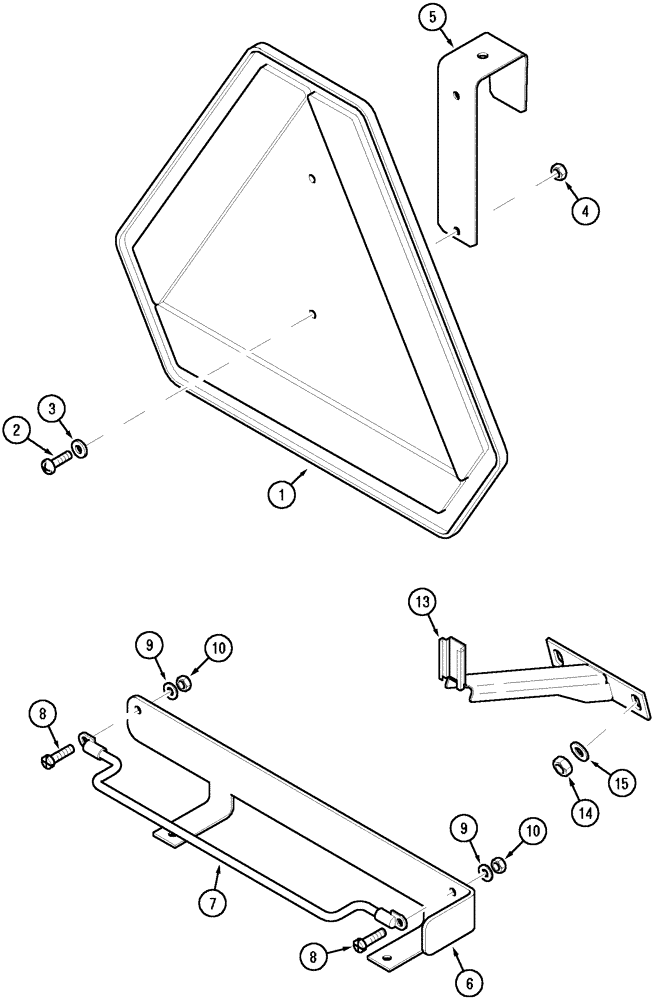

Запчасти Case IH MX90C (09-80) - WARNING TRIANGLE SLOW MOVING VEHICLE, SCANDINAVIAN (09) - CHASSIS

Scandinavian

1шт.

275106A2

TRAFFIC SIGN

consists of: 1 - 5

1шт.

1

133273A1

TRAFFIC SIGN

1шт.

2

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

4

832-10406

NUT,M6 x 1, Cl 8

2шт.

5

275105A2

SUPPORT

N.A. only

1шт.

275104A3

TRAFFIC SIGN

consists of: 1 - 5

1шт.

1

311860A1

EMBLEM

1шт.

2

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

4

832-10406

NUT,M6 x 1, Cl 8

2шт.

5

275105A2

SUPPORT

storage

1шт.

278150A2

SUPPORT

consists of: 6 - 12

1шт.

6

313637A4

PLATE

1шт.

7

278155A3

STRAP

1шт.

8

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

1шт.

9

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

10

832-10405

NUT,M5 x .8, Cl 8

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

mounting

1шт.

for Scandinavia and N.A. only / Pour Scandinavie Et N.A. Seulement Nur fuer Skandinavien Und N.A. / Para Escandinavia Y N.A. Solamente

1шт.

13

259947A2

SUPPORT

1шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
