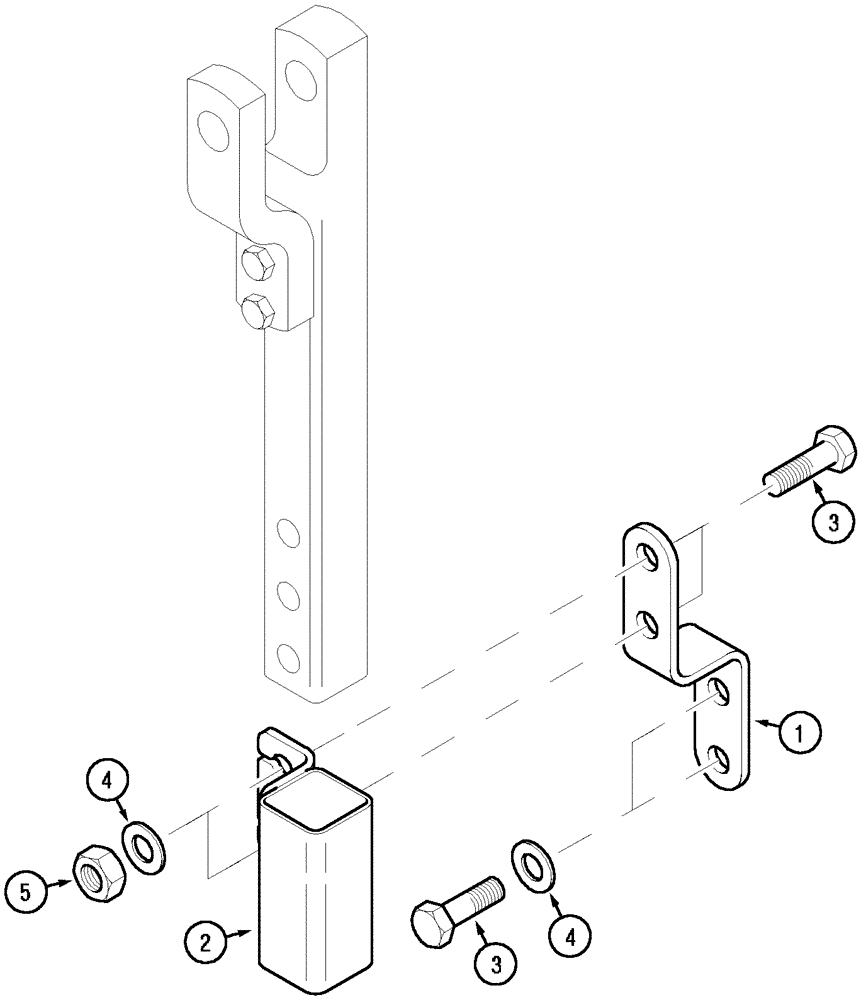

Запчасти Case IH MX90C (09-79) - DRAWBAR STORAGE (09) - CHASSIS

1

326490A1

SUPPORT

1шт.

2

241267A1

SUPPORT

1шт.

3

627-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9, Full Thd

20 x 45 mm

4шт.

3

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

M20 x 60; 10.9, use with, loader

4шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

5

829-1420

NUT,M20, Cl 10

2шт.
