Запчасти Case IH MX90C (09-77) - DRAWBAR HAMMERSTRAP, SWINGING, USED WITH TRAILER HITCH (09) - CHASSIS

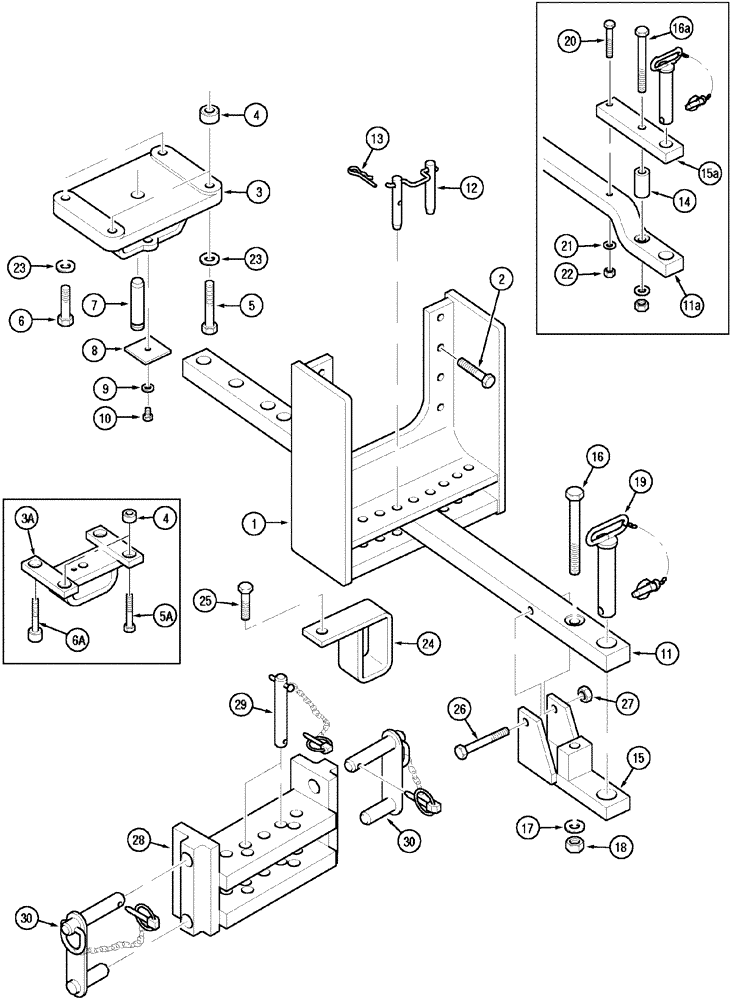

Схема запчастей Case IH MX90C - (09-77) - DRAWBAR HAMMERSTRAP, SWINGING, USED WITH TRAILER HITCH (09) - CHASSIS
4
1
16a
23
29
15
5
30
11a
24
12
7
13
3a
23
16
27
18
4
28
19
20
8
21
11
22
10
30
25
17
14
6a
6
5a
3
15a
26
9

Артикул

Название

Примечание

Количество

swinging

1шт.

1

247476A1

SUPPORT ASSY.

1шт.

2

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

8шт.

3

238418A1

HITCH BRACKET

Includes: 4

1шт.

3a

1530810C1

HITCH BRACKET

Includes: 4

1шт.

4

1331722C1

LARGE PIN

PIN, LARGE

2шт.

5

828-16085

BOLT,Hex, M16 x 2 x 85mm, Cl 10.9

2шт.

5a

828-16075

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

2шт.

6

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

6a

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

7

1530623C1

HITCH PIN

1шт.

8

1530624C1

PLATE

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

10

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

11

333339A1

BAR,1288mm L x 60mm W x 40mm Thk

1шт.

11a

104642A2

BAR

optional, use with 13A, 15A, 16A

1шт.

12

1534642C1

HITCH PIN,16mm OD x 94.8mm L

1шт.

13

198121A1

SPRING CLIP

1шт.

14

254456A1

SPACER

1шт.

15

333062A1

SUPPORT

1шт.

15a

275289A1

DRAWBAR

optional, use with 11A, 13A, 16A

1шт.

16

827-16170

BOLT,Hex, M16 x 2 x 170mm, Cl 10.9

1шт.

16a

828-16180

BOLT,Hex, M16 x 2 x 180mm, Cl 10.9

Optional, Use with 11A, 13A, 15A

1шт.

17

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

18

829-1416

NUT,M16, Cl 10

1шт.

19

1974215C3

HITCH PIN,40mm OD x 185mm L

1шт.

20

828-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

21

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

22

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

23

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

24

1973937C3

SUPPORT

N.A. only

1шт.

25

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

26

827-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

1шт.

27

829-1412

NUT,M12, Cl 10.9

1шт.

used with trailer hitch

1шт.

131228A2

SUPPORT ASSY.

335 mm, Europe only, consists of: 26 - 28

1шт.

28

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

29

139129A2

HITCH PIN,19mm OD x 136mm L

2шт.

30

175735A1

HITCH PIN

2шт.
