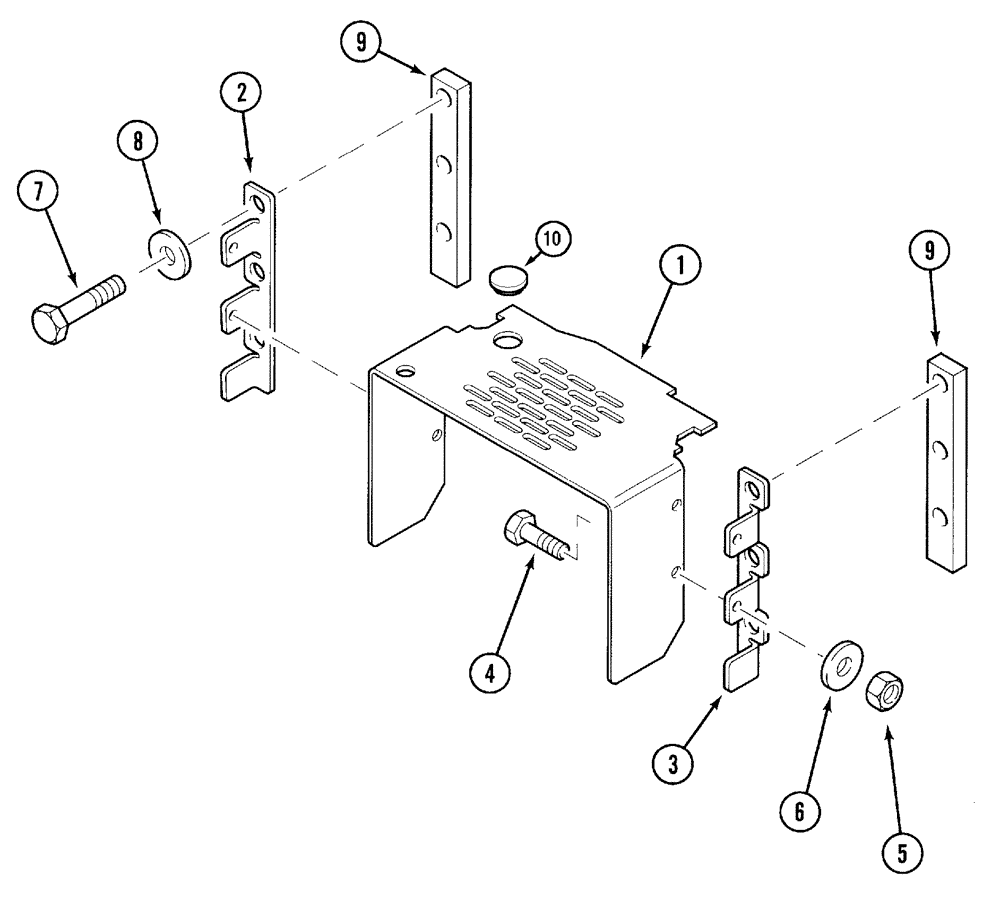

Запчасти Case IH MX90C (09-72) - P.T.O. SHIELD, EUROPE ONLY, WITHOUT TRAILER HITCH (09) - CHASSIS

1

1974281C5

PROTECTION PLATE

1шт.

2

1974261C2

SUPPORT

left

1шт.

3

1974262C2

SUPPORT

right

1шт.

4

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

5

829-1310

NUT,M10, Cl 10

4шт.

6

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

7

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

8

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

9

1974105C1

PLATE

2шт.

10

1533636C1

PLUG

1шт.
