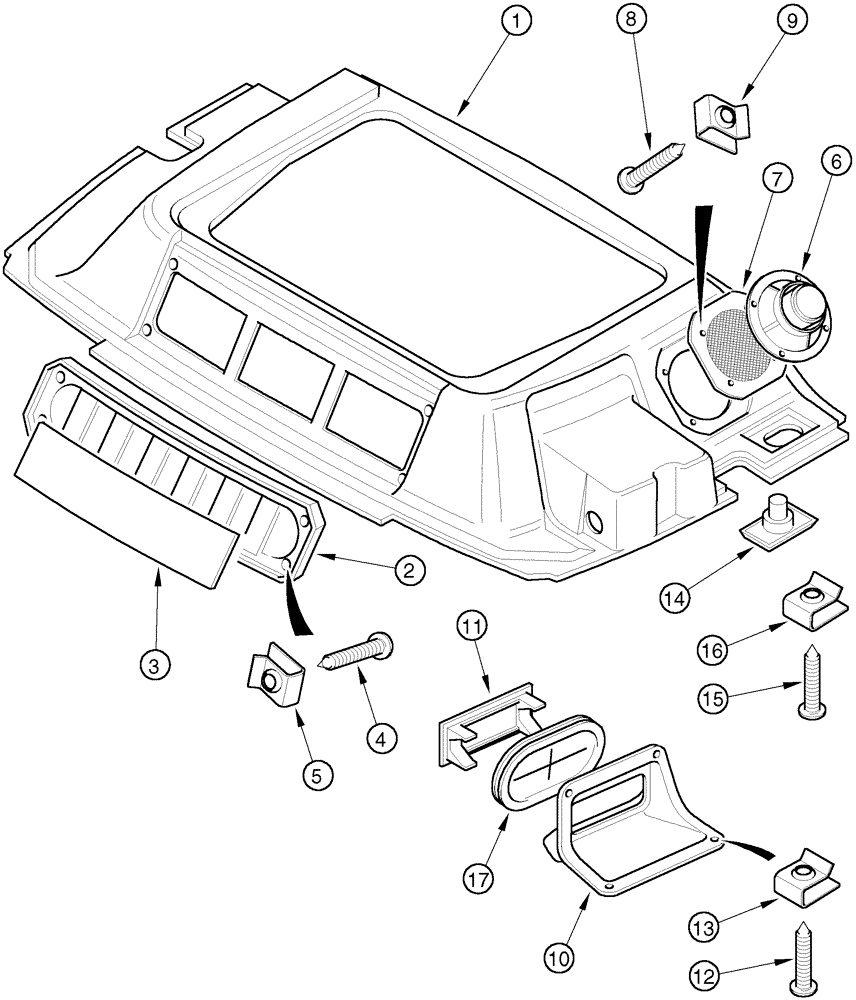

Запчасти Case IH MX90C (09-30) - CAB HEADLINER TRIM, EUROPE ONLY, WITH HATCH (09) - CHASSIS

1

385448A1

PADDING

consists of: 1A, 1B

1шт.

1a

385356A1

PADDING

1шт.

1b

372096A1

NUT

drive

18шт.

2

195282A4

GRILLE ASSY

1шт.

3

253210A1

FILTER

1шт.

4

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

4шт.

5

302862A1

SPRING NUT,4.2 Thread

4шт.

6

182721A2

SPEAKER

5-1/2

2шт.

7

187281A1

COVER

2шт.

8

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

8шт.

9

302862A1

SPRING NUT,4.2 Thread

8шт.

10

196097A2

BRACKET

1шт.

11

1535219C1

COVER

1шт.

12

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

4шт.

13

302862A1

SPRING NUT,4.2 Thread

4шт.

14

83882C91

LAMP

see Page(s) 4-23

1шт.

15

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

2шт.

16

302862A1

SPRING NUT,4.2 Thread

2шт.

17

322636A1

GROMMET

1шт.
