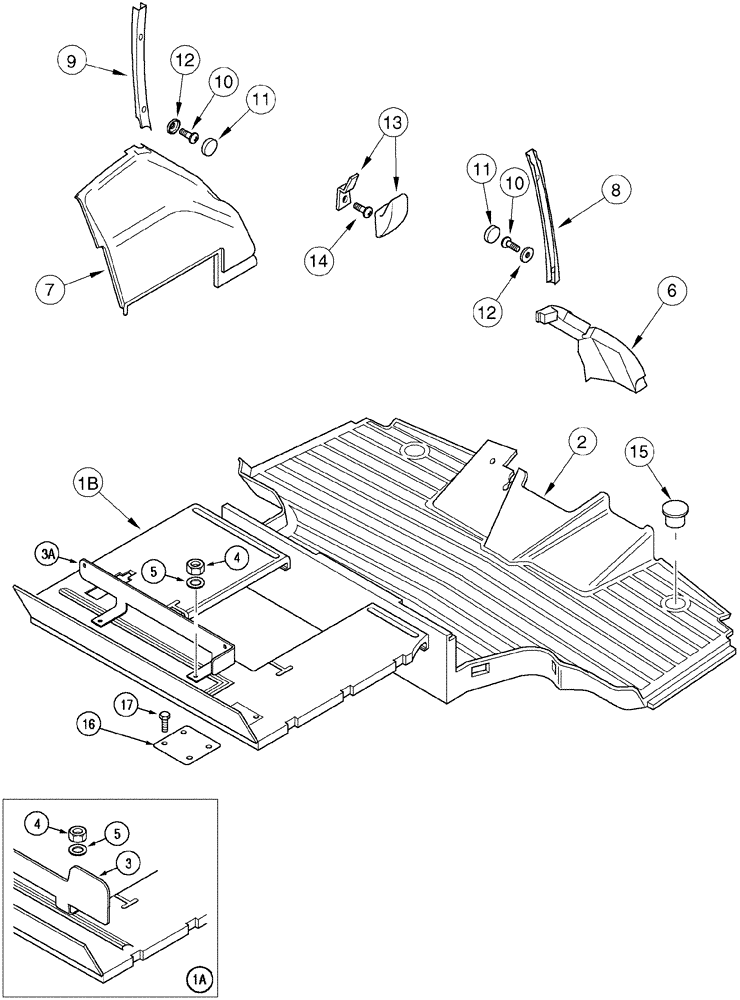

Запчасти Case IH MX90C (09-25) - CAB INTERIOR (09) - CHASSIS

1

313638A3

FLOOR MAT

1шт.

1

337096A2

FLOOR MAT

LP cab

1шт.

2

282862A2

FLOOR MAT

Includes: 15

1шт.

2

337095A1

FLOOR MAT

LP cab, Includes: 15

1шт.

3

192438A4

LARGE PLATE

PLATE, LARGE

1шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

6

241963A3

LINING

right

1шт.

6

248769A3

LINING

right, LP cab

1шт.

6

372095A1

LINING

right, LP cab, Europe Only

1шт.

7

241964A2

LINING

left

1шт.

7

248770A2

LINING

left, LP cab

1шт.

7

372094A1

LINING

left, LP cab, Europe Only

1шт.

8

192020A3

PANEL, SIDE

right, Europe Only

1шт.

8

276737A1

LINING

right, LP cab

1шт.

8

276738A1

LINING

right, LP cab, intermittent, wiper motor

1шт.

9

192021A3

PANEL, SIDE

left

1шт.

10

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

4шт.

11

97280C1

CAP

4шт.

12

97279C1

RETAINER

4шт.

13

3234176R1

COAT HOOK

2шт.

14

1977686C1

SCREW

4.2 x 25 mm

1шт.

15

281848A1

PLUG

1шт.

16

177269A1

SPRING NUT,M4.2

4шт.

17

781-24620

SELF-TAP SCREW,Hex Flg Hd, M6 x 20

4шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.
