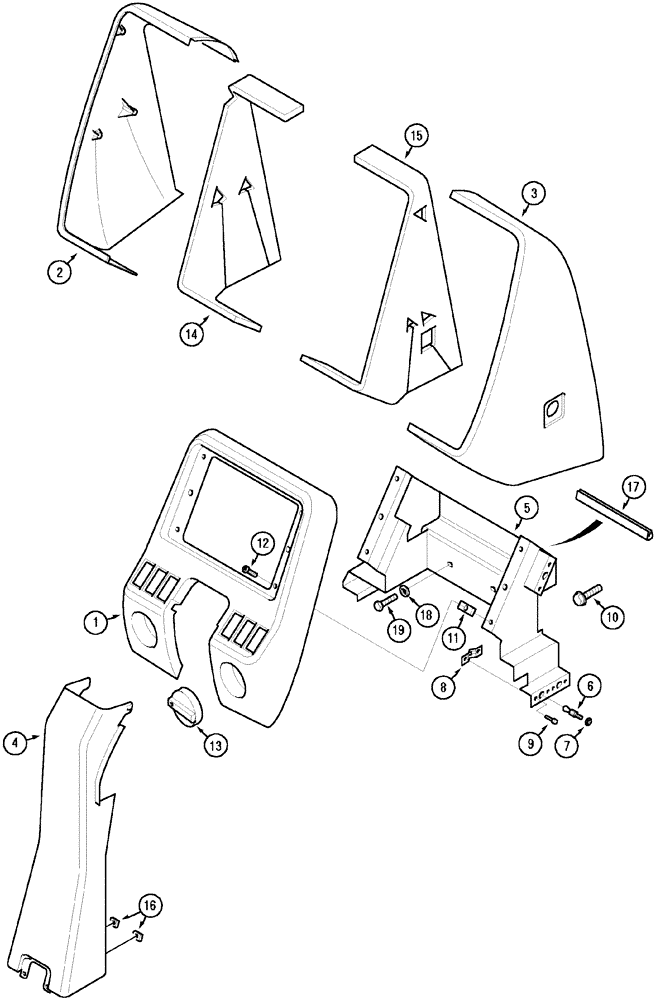

Запчасти Case IH MX90C (09-16) - INSTRUMENT PANEL (09) - CHASSIS

1

254688A2

PANEL

platform, Europe only

1шт.

1

194347A5

COVER

Europe only

1шт.

1

227333A4

PANEL

platform, N.A. only

1шт.

1

244764A1

COVER

N.A. only

1шт.

1

282506A1

COVER

LP cab

1шт.

2

194348A5

PANEL

left

1шт.

2

281797A1

COVER

LP cab

1шт.

3

194349A6

PANEL

right

1шт.

3

281798A1

COVER

LP cab

1шт.

4

194350A4

PANEL

front

1шт.

4

283457A1

COVER

LP cab

1шт.

5

194354A8

SUPPORT ASSY.

1шт.

6

1977929C1

STUD,M5 x 0.8

6шт.

7

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

6шт.

8

1961435C1

LATCH

6шт.

9

151-553

RIVET,Pop, 1/8" x .337"

12шт.

10

779-34395

SELF-TAP SCREW,Hex Hd, M4.8 x 9.5

4шт.

11

131-892

SPRING NUT,Tinn, U, #10-16

6шт.

12

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

4шт.

13

1331046C2

KNOB

1шт.

14

246255A4

INSULATOR

1шт.

14

293032A1

INSULATOR

LP cab

1шт.

15

246256A4

INSULATOR

1шт.

15

293033A1

INSULATOR

LP cab

1шт.

16

222858A1

CLASP

2шт.

17

NSS

NOT SOLD SEPARAT

TRIM, cut from 256196A1

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

256196A1

ROLL

15240 mm, bulk length

1шт.
