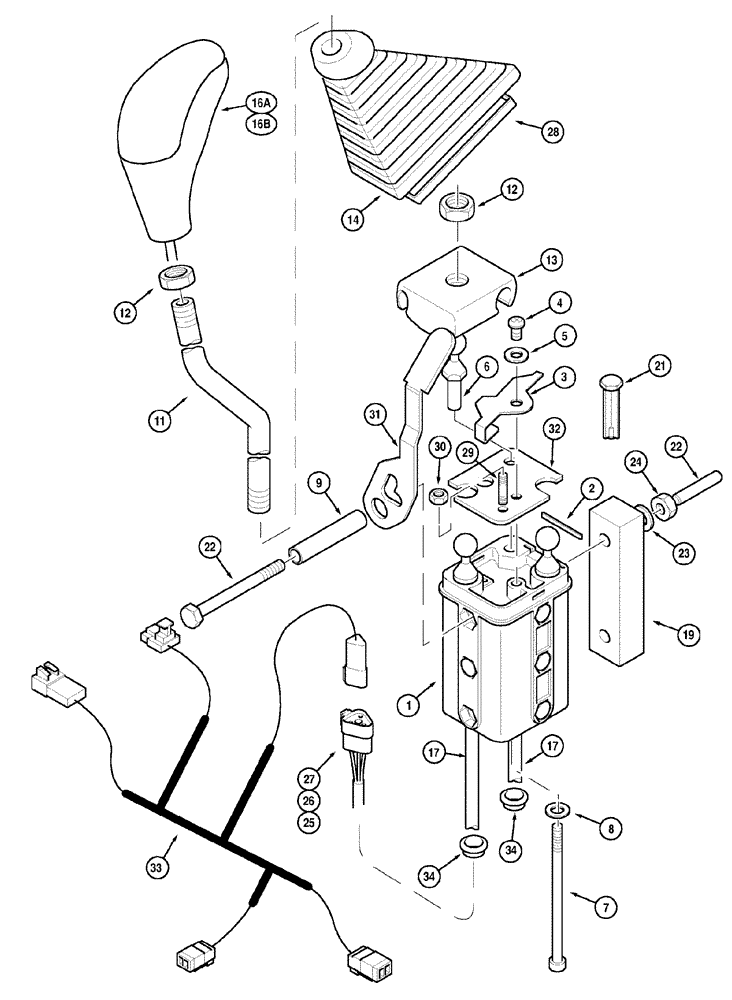

Запчасти Case IH MX90C (09-15) - CONTROL LEVER LOADER CONTROL, IF SO EQUIPPED (09) - CHASSIS

254288A2

CONTROL

double acting, consists of: 1, 2A - 32

1шт.

254287A2

CONTROL

consists of: 1, 2B, 11 - 32

1шт.

1

247713A2

VALVE, CONTROL

1шт.

2

258464A1

SPRING LOCK

1шт.

3

315179A1

LATCH

1шт.

4

301-1468

DRIVE SCREW,Drive, #10 x 1/2"

2шт.

5

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

13/64 x 3/4 x 1/16

1шт.

6

327141A1

BALL JOINT

1шт.

7

864-6080

HEX SOC SCREW,M6 x 80mm, Cl 8.8

1шт.

8

495-81102

WASHER,.266" x 1/2" x .060"

6.7 x 12.7 x 1.5

1шт.

9

253279A1

SPACER

2шт.

10

878-20814

SET SCREW,M8 x 14mm

2шт.

11

247712A2

CONTROL LEVER

1шт.

12

829-23414

THIN NUT,Thin, M14 x 1.5, Cl 05

M14; 10

2шт.

13

253276A1

COUPLING FLANGE

control

1шт.

14

257604A1

BOOT

1шт.

15

738-3422

PIN,M4 x 22, Coiled

3шт.

16a

246988A2

SHIFTING UNIT

with switch

1шт.

16b

246982A2

KNOB

without switch

1шт.

17

253271A2

CABLE SHEATH

2шт.

18

95-31056

WASHER,1/2" x 1 1/4" x .109"

14 x 32 x 2.7 mm

1шт.

19

247716A2

SPACER

1шт.

20

253273A1

GRIP

1шт.

21

327142A1

BUSHING

1шт.

22

814-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

24

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

25

225295C1

ELEC CONNECTOR,Female, 3 Pin

1шт.

26

225296C1

ELEC CONNECTOR

1шт.

27

225053C1

TERMINAL CONNECTOR,Female, 0.8 - 1 mm2

1шт.

28

241536A1

SUPPORT

1шт.

29

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

30

832-10406

NUT,M6 x 1, Cl 8

1шт.

31

307111A1

CONTROL LEVER

1шт.

32

327140A1

PLATE

1шт.

33

247474A3

HARNESS

loader

1шт.

34

182045A1

GROMMET

3шт.
