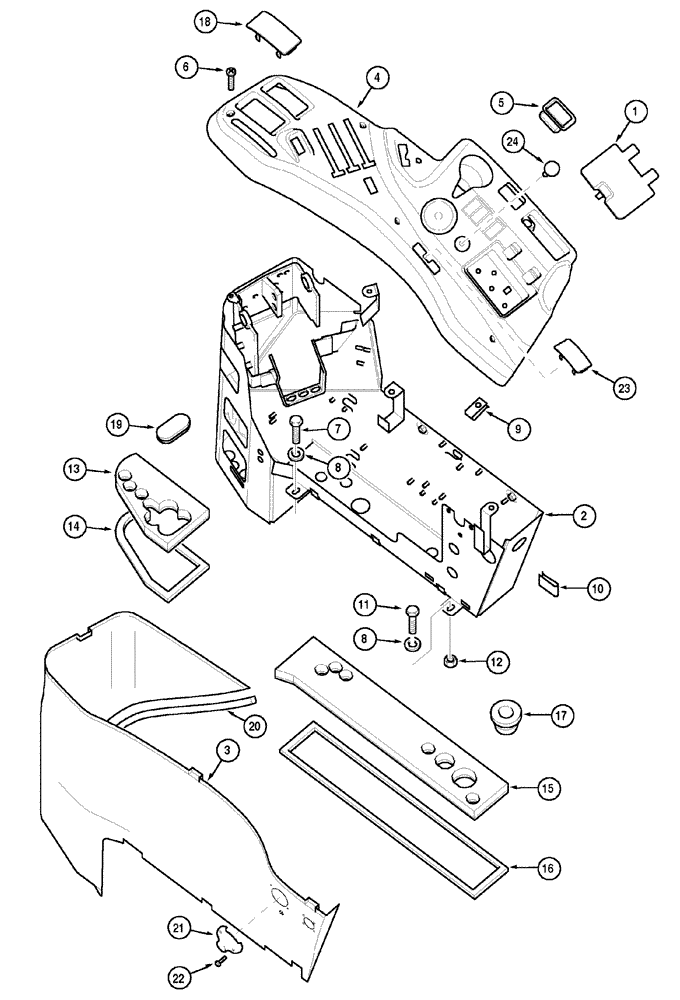

Запчасти Case IH MX90C (09-14) - CONTROL CONSOLE, RIGHT (09) - CHASSIS

1

236756A2

COVER

1шт.

2

234192A6

BRACKET

1шт.

2

341140A3

BRACKET

ride control

1шт.

3

248865A4

PANEL

without creep speed

1шт.

3

292069A2

PANEL

creep speed

1шт.

4

234243A3

COVER

Grey

1шт.

4

248960A3

COVER

Black

1шт.

4

356496A1

COVER

ride control, cab

1шт.

4

355826A1

CONSOLE

ride control, platform

1шт.

5

248395A1

ASH TRAY

1шт.

6

540-704

SCREW,Cross Pan Hd, M6 x 16

5шт.

7

514-620

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

5шт.

9

833-40306

SPRING NUT,M6, U

1шт.

10

248972A1

NUT

3шт.

11

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

13

277653A1

INSULATOR

front

1шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

14

239530A1

SEAL

1шт.

15

345075A1

INSULATOR

rear

1шт.

16

241965A1

SEAL

1шт.

17

182220A1

GROMMET

3шт.

18

241535A1

COVER

1шт.

19

276942A1

GROMMET

72 x 40 mm

1шт.

20

257549A2

SHAFT SEAL

775 mm

1шт.

21

278756A3

COVER

creep speed

1шт.

22

1971376C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

No. 10-16 x 1

2шт.

23

284574A2

COVER

shiftable P.T.O., N.A. only

1шт.

24

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.
