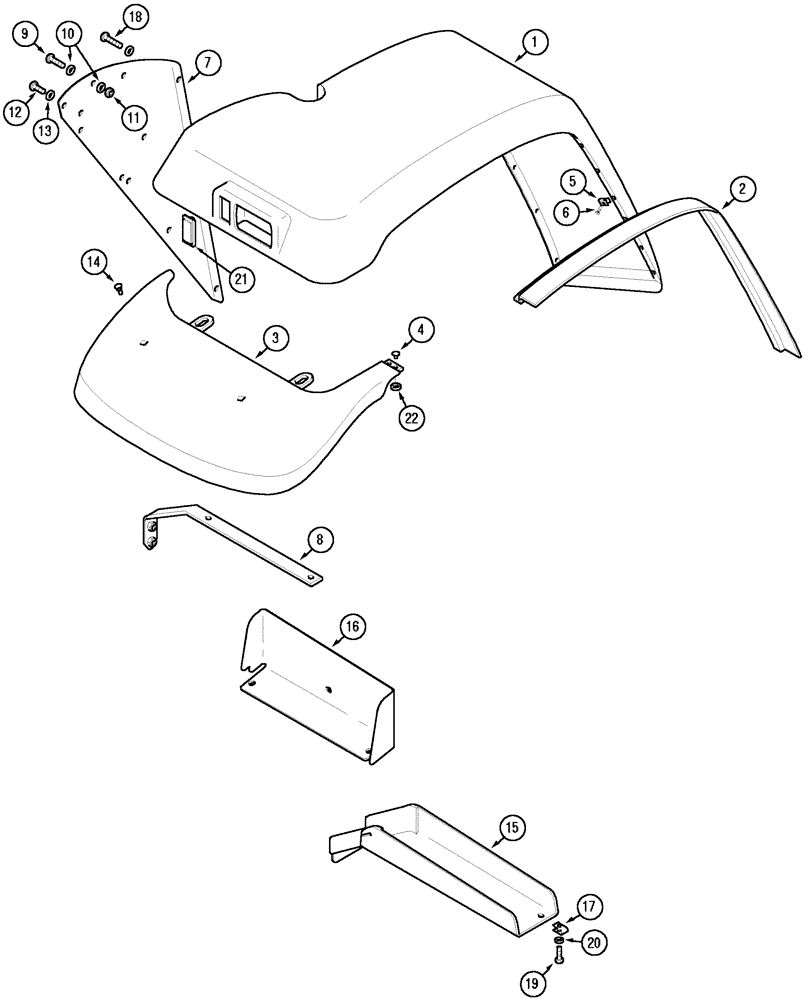

Запчасти Case IH MX90C (09-06) - REAR FENDERS CAB, EUROPE ONLY (09) - CHASSIS

1

195949A4

FENDER

540 mm, left

1шт.

1

195950A4

FENDER

540 mm, right

1шт.

2

224719A3

EXTENSION

left

1шт.

2

224720A3

EXTENSION

right

1шт.

3

224721A3

FENDER EXTENSION

rear, left

1шт.

3

224722A3

EXTENSION

rear, right

1шт.

4

151-563

RIVET,Pop, 3/16" x .690"

4шт.

5

228995A2

SPRING NUT

26шт.

6

760-34313

SELF-TAP SCREW,Pan Hd, M4.2 x 13

26шт.

7

227828A5

EXTENSION

583 x 618.4, left

1шт.

7

227827A4

EXTENSION

583 x 618.4, right

1шт.

7

292936A1

EXTENSION

wide, right

1шт.

7

292937A2

EXTENSION

wide, left

1шт.

8

246489A2

SUPPORT ASSY.

2шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.

12

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

13

892-11008

LOCK WASHER,8mm ID

8шт.

14

611-8020

CARRIAGE BOLT,M8 x 20mm, Class 4.6

M8 x 16; 4.6

4шт.

15

246768A3

SUPPORT

right

1шт.

15

246769A3

SUPPORT

left

1шт.

16

195955A2

MUD DEFLECTOR

left

1шт.

16

195956A2

MUD DEFLECTOR

right

1шт.

17

833-40306

SPRING NUT,M6, U

8шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

19

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

8шт.

20

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

8шт.

21

221654A1

PLUG

without remote hitch switch

2шт.

22

195-81035

WASHER,0.2" ID x 0.73" OD x 0.06" Thk

4шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.
