Запчасти Case IH MX90C (09-03) - FRONT END WEIGHTS (09) - CHASSIS

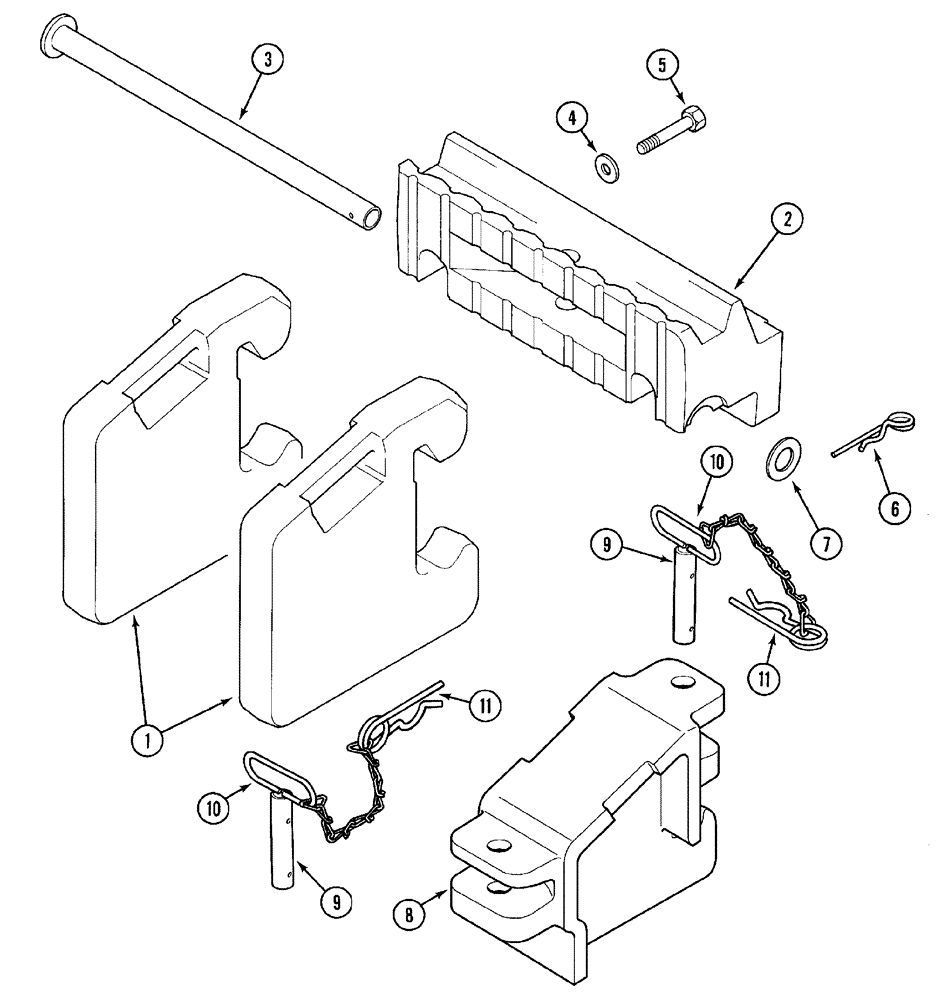

Схема запчастей Case IH MX90C - (09-03) - FRONT END WEIGHTS (09) - CHASSIS
3
2
5
9
4
11
8
9
10
1
11
10
7
6

Артикул

Название

Примечание

Количество

141414A1

WEIGHT

machine application, consists of: 4 weights max.

1шт.

81814C1

WEIGHT

machine application, consists of: 6 weights max.

1шт.

141412A1

WEIGHT

machine application, consists of 7 weights max.

1шт.

81817C1

SET

machine application, consists of 9 weights max.

1шт.

1

3223250R2

WEIGHT

1шт.

2

1537210C1

SUPPORT

1шт.

3

T100545

TUBE,562.5 mm L

1шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

5

827-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

4шт.

6

1328360C1

SPRING CLIP

1шт.

7

1328361C1

WASHER

1шт.

8

T101136

WEIGHT

1шт.

9

3147825R92

PIN,32mm OD x 508.85mm L

Includes: 10

1шт.

10

3057366R1

HOOK,Knotter Chain

1шт.

11

1328360C1

SPRING CLIP

1шт.

Выбрано товаров: 15
