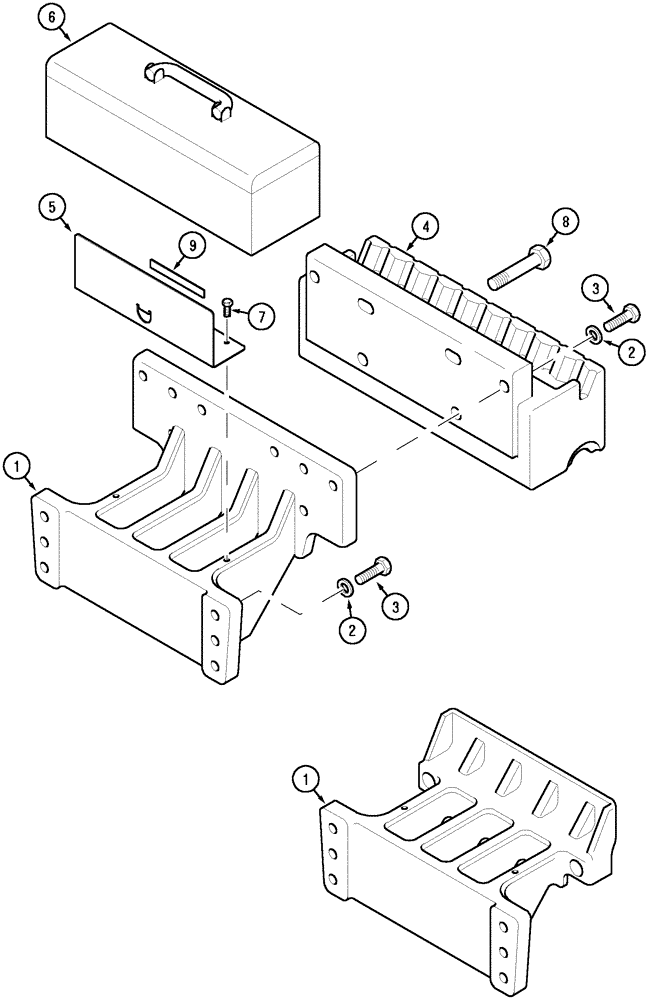

Запчасти Case IH MX90C (09-02) - FRONT WEIGHT EXTENSION AND TOOLBOX (09) - CHASSIS

1

304971A2

SUPPORT ASSY.

Europe only

1шт.

1

304970A3

SUPPORT ASSY.

N.A. only

1шт.

2

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

12шт.

3

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

1шт.

4

192635A1

SUPPORT

Europe only

1шт.

5

321882A1

SUPPORT

1шт.

6

A181436

TOOL BOX

serial No. - JJE1052313

1шт.

6

355487A1

BOX, TOOL

serial No. JJE1052314 -

1шт.

7

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

8

827-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

9

326577A1

SEAL

150 mm

1шт.
