Запчасти Case IH MX90C (08-24) - REMOTE CONTROL VALVE (08) - HYDRAULICS

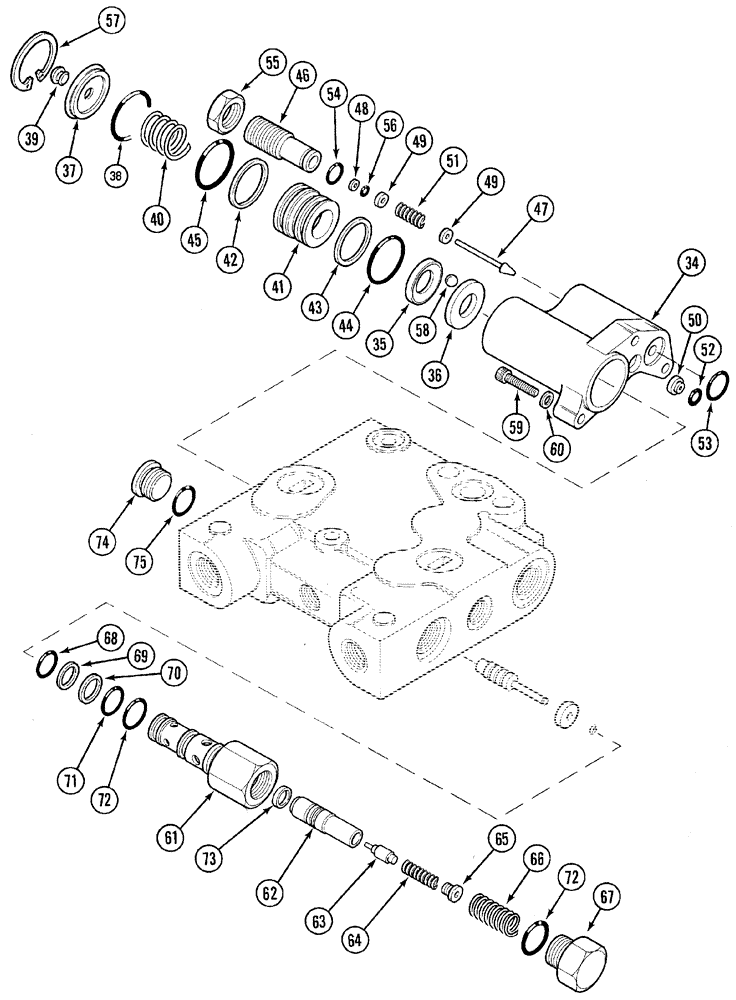

Схема запчастей Case IH MX90C - (08-24) - REMOTE CONTROL VALVE (08) - HYDRAULICS
74
43
48
66
69
58
42
41
37
59
49
50
36
56
52
40
47
67
38
49
53
72
63
55
46
70
34
71
62
65
72
75
51
64
39
61
60
45
68
57
35
44
73
54

Артикул

Название

Примечание

Количество

321361A1

RETAINER

consists of: 37, 38, 39

1шт.

37

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

38

321360A1

O-RING,0.8mm Thk x 27mm ID, Cl 5, 75 Duro

1шт.

39

G107780

VALVE, CHECK

1шт.

40

G110152

SPRING

1шт.

G108921

PISTON

consists of: 41 - 45

1шт.

41

G108908

PISTON

1шт.

42

G108728

BACK-UP RING

1шт.

43

G108922

BACK-UP RING

1шт.

44

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

46

G110300

PLUG

1шт.

47

G110279

VALVE POPPET

1шт.

48

G110289

BACK-UP RING

1шт.

49

G110281

SPRING CUP

2шт.

50

G108918

ORIFICE

1шт.

51

G109275

SPRING

1шт.

52

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

53

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

54

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

55

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

56

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

1шт.

57

100-21118

SNAP RING,1.188", Int, #118

1шт.

58

211-1007

BALL,7/32" Dia

Gr 24, CRS

8шт.

59

61-31016

HEX SOC SCREW,#10 - 24 x 1"

3шт.

60

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(7/32" x 7/16" x 3/64")

3шт.

1971801C2

CHECK VALVE

consists of: 61 - 73

1шт.

61

NSS

NOT SOLD SEPARAT

BODY

1шт.

62

NSS

NOT SOLD SEPARAT

VALVE poppet

1шт.

63

NSS

NOT SOLD SEPARAT

VALVE poppet

1шт.

64

NSS

NOT SOLD SEPARAT

SPRING

1шт.

65

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

66

NSS

NOT SOLD SEPARAT

SPRING

1шт.

67

NSS

NOT SOLD SEPARAT

CAP

1шт.

68

G110295

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

69

G110287

BACK-UP RING

1шт.

70

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

71

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

72

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

73

G108724

BACK-UP RING

2шт.

74

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 75

1шт.

75

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

45

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Выбрано товаров: 42
