Запчасти Case IH MX90C (08-20) - REMOTE CONTROL VALVES (08) - HYDRAULICS

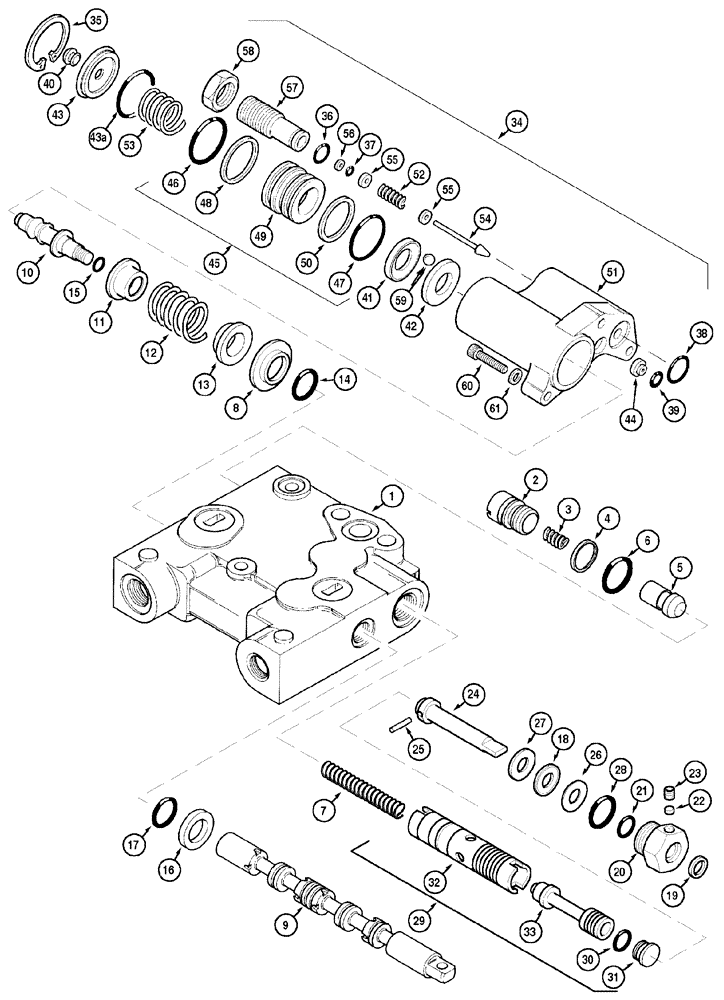

Схема запчастей Case IH MX90C - (08-20) - REMOTE CONTROL VALVES (08) - HYDRAULICS
8
5
52
26
40
2
55
19
20
29
43
57
21
51
22
59
60
32
39
6
17
13
9
41
49
36
50
46
53
54
12
44
24
38
18
55
10
1
25
33
47
48
11
61
42
7
31
58
30
43a
27
28
56
16
14
45
4
15
35
37
3
34
23

Артикул

Название

Примечание

Количество

199683A3

VALVE, CONTROL

priority, consists of: 1 - 83

1шт.

185453A4

VALVE, CONTROL

with 1 check, consists of: 1 - 83

1шт.

1

NSS

NOT SOLD SEPARAT

VALVE body

1шт.

1542563C1

KIT

consists of: 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING

1шт.

4

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

5

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

6

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

7

185447A1

SPRING

with priority valve

1шт.

7

185448A2

SPRING

with 1 check valve

1шт.

NSS

NOT SOLD SEPARAT

SPOOL ASSY. consists of: 8 - 15

1шт.

8

G108630

HOLDER

1шт.

9

1542571C1

SPOOL

1шт.

10

246405A1

STUD

1шт.

11

G108913

SPRING CUP

1шт.

12

G108915

SPRING

outer

1шт.

13

G108914

SPRING CUP

inner

1шт.

14

313247A1

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

1шт.

15

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

16

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

1шт.

17

313247A1

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

1шт.

111205A1

VALVE

flow control, consists of: 18 - 28

1шт.

18

F13537

THRUST BEARING

1шт.

19

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

1шт.

20

111206A1

PLUG

1шт.

21

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

22

111207A1

INSERT

2шт.

23

178-896

SET SCREW,Hex Soc, #10-32 x 3/16"

2шт.

24

1980302C2

ROD

Includes: 25

1шт.

25

38-1812

LOCK PIN,1/8" x 3/4", Slotted

1/8 x 11/16 in

1шт.

26

G108956

RACE,9.58mm ID x 20.37mm OD x 0.81mm Thk

1шт.

27

G108957

RACE,9.58mm ID x 20.37mm OD x 1.59mm Thk

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

139577A2

SLEEVE VALVE

with priority valve, consists of: 30 - 33

1шт.

29

140906A3

VALVE

with 1 check valve, consists of: 30 - 33

1шт.

30

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 ID x 1/16

1шт.

31

183491A1

PLUG

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

33

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

34

186440A2

SLIDE VALVE

consists of: 35 - 59

1шт.

35

100-21118

SNAP RING,1.188", Int, #118

1шт.

36

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

37

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

1шт.

38

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

39

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

321361A1

RETAINER

consists of: 40, 43, 43A

1шт.

40

G107780

VALVE, CHECK

1шт.

41

G108911

WASHER

outer

1шт.

42

G108912

WASHER

inner

1шт.

43

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

43a

321360A1

O-RING,0.8mm Thk x 27mm ID, Cl 5, 75 Duro

1шт.

44

G108918

ORIFICE

1шт.

45

G108921

PISTON

Includes: 46 - 50

1шт.

47

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

48

G108728

BACK-UP RING

large

1шт.

49

G108908

PISTON

1шт.

50

G108922

BACK-UP RING

small

1шт.

51

186439A1

COVER ASSY

1шт.

52

G109275

SPRING

1шт.

53

G110152

SPRING

1шт.

54

G110279

VALVE POPPET

1шт.

55

G110281

SPRING CUP

2шт.

56

G110289

BACK-UP RING

1шт.

57

G110300

PLUG

1шт.

58

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

59

211-1007

BALL,7/32" Dia

Gr 24, CRS

8шт.

60

61-31016

HEX SOC SCREW,#10 - 24 x 1"

3шт.

61

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(7/32" x 7/16" x 3/64")

3шт.

46

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Выбрано товаров: 70
