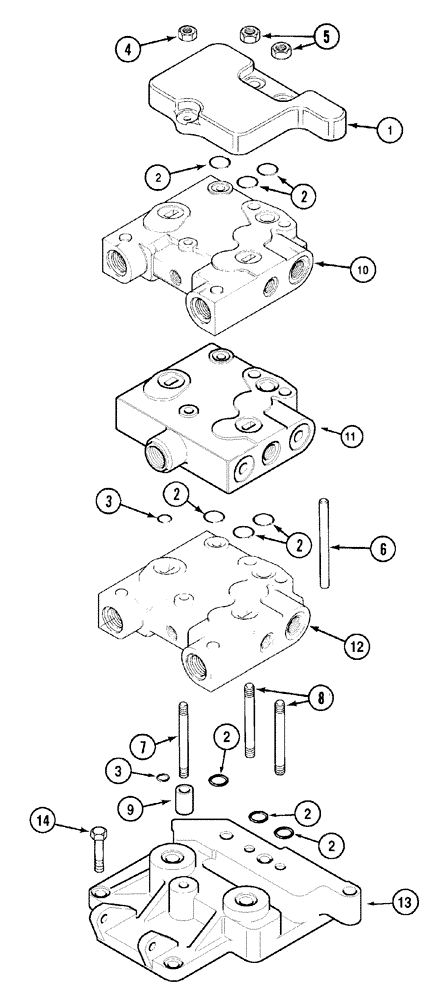

Запчасти Case IH MX90C (08-18) - REMOTE CONTROL VALVES (08) - HYDRAULICS

1

G110143

COVER

1шт.

2

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

3

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

7/8 ID x 1/8

1шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

5

829-1412

NUT,M12, Cl 10.9

1шт.

6

G110178

ROD

110 mm, 2 valve, without power beyond

1шт.

6

G110177

ROD

154 mm, 2 valve

1шт.

6

G110176

ROD,16mm OD x 199mm L

198 mm, 3 valve

1шт.

7

1346128C3

TRUSS ROD

10 x 154 mm, 2 valve, without power beyond

1шт.

7

1346130C3

TRUSS ROD

10 x 199 mm, 2 valve

1шт.

7

1346132C3

TRUSS ROD

10 x 243 mm, 3 valve

1шт.

7

1334559C2

STUD

10 x 275 mm, 4 valve

1шт.

8

1346129C3

TRUSS ROD

12 x 154 mm, 2 valve, without power beyond

2шт.

8

1346131C3

TRUSS ROD

12 x 199 mm, 2 valve

2шт.

8

1346133C3

TRUSS ROD

12 x 243 mm, 3 valve

2шт.

8

1994613C1

STUD

12 x 268 mm, 4 valve

1шт.

8

308714A1

THREADED ROD

12 x 335 mm, 4 valve

1шт.

9

230546A1

SPACER

44 mm, with power beyond

1шт.

10

185459A2

VALVE, CONTROL

see Figure 8-23

1шт.

11

199168A1

LARGE PLATE

PLATE, LARGE power beyond, see Figure 8-19

1шт.

12

185453A4

VALVE, CONTROL

auxiliary, see Figure 8-20

1шт.

13

199690A5

COVER

inlet and outlet, see Figure 8-11

1шт.

14

828-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.
