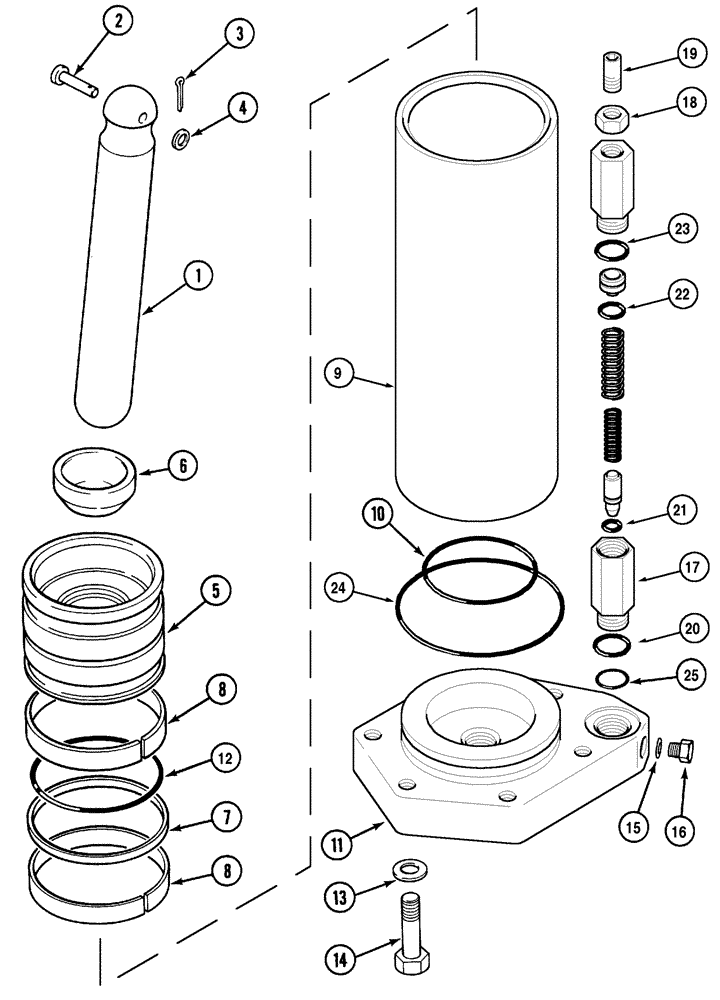

Запчасти Case IH MX90C (08-13) - HITCH CYLINDER ASSEMBLY (08) - HYDRAULICS

1

220862A1

PISTON ROD

1шт.

2

A186816

PIN

1шт.

3

732-2512

COTTER PIN,M2.5 x 12

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

221493A1

PISTON ASSY.

consists of: 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT

1шт.

7

A186826

SEAL

1шт.

8

A186324

RING,Split, 98.64mm ID x 105mm OD x 15.88mm Thk

2шт.

9

221491A1

SLEEVE CYLINDER

1шт.

10

638-65095

O-RING,5.3mm Thk x 95mm ID, Cl 6, 90 Duro

1шт.

11

220929A1

CAP

1шт.

12

239-5342

O-RING,Square, 0.188" Thk x 3.625" ID, -342

1шт.

13

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

14

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

6шт.

15

220064A1

PLUG,M14 x 1.5, ORB

Incl. 16

1шт.

16

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

221470A1

VALVE

Includes: 17 - 23

1шт.

17

NSS

NOT SOLD SEPARAT

BODY

1шт.

18

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

19

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

1шт.

20

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

21

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

638-54122

O-RING,3.55mm Thk x 122mm ID, Cl 5, 75 Duro

1шт.

25

238-5029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 5, 75 Duro

1шт.
