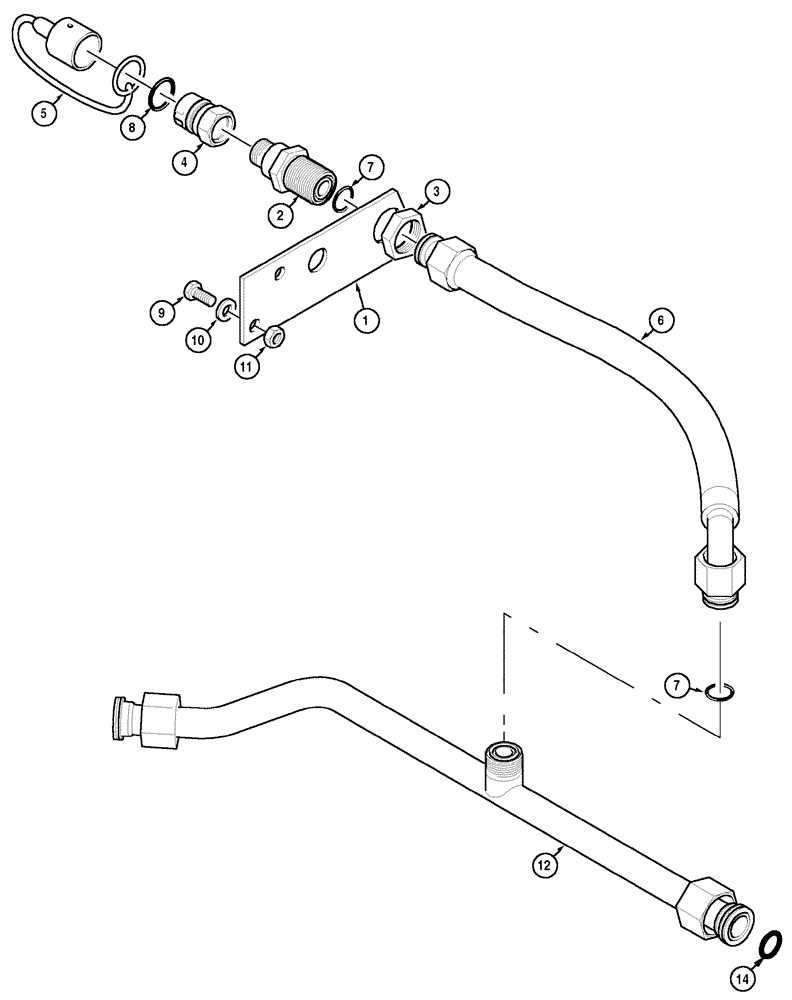

Запчасти Case IH MX90C (08-12) - MOTOR RETURN COUPLER (08) - HYDRAULICS

1

1533026C1

SUPPORT

1шт.

2

1531931C2

CONNECTOR, ELEC

CONNECTOR N.A. only

1шт.

2

1533233C2

HYD CONNECTOR

Europe only

1шт.

3

218-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

4

1272400C1

COUPLING

N.A. only

1шт.

4

1533232C1

COUPLING

Europe only

1шт.

5

1954133C1

PLUG

N.A. only

1шт.

5

1533433C1

CAP

Europe only

1шт.

6

275507A2

HOSE,19mm ID x 450mm L

450 mm

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

N.A. only

1шт.

8

1533305C1

O-RING,0.116" Thk x 0.863" ID, -911, Cl 6, 90 Duro

Europe only

1шт.

9

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

11

825-1410

NUT,M10, Cl 8

2шт.

12

275836A1

HYD TUBE,25 mm OD, 600, 113 mm Length

Trans No. - JKA0477385

1шт.

12

325822A1

HYD TUBE

Trans No. JKA0477386 -

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
