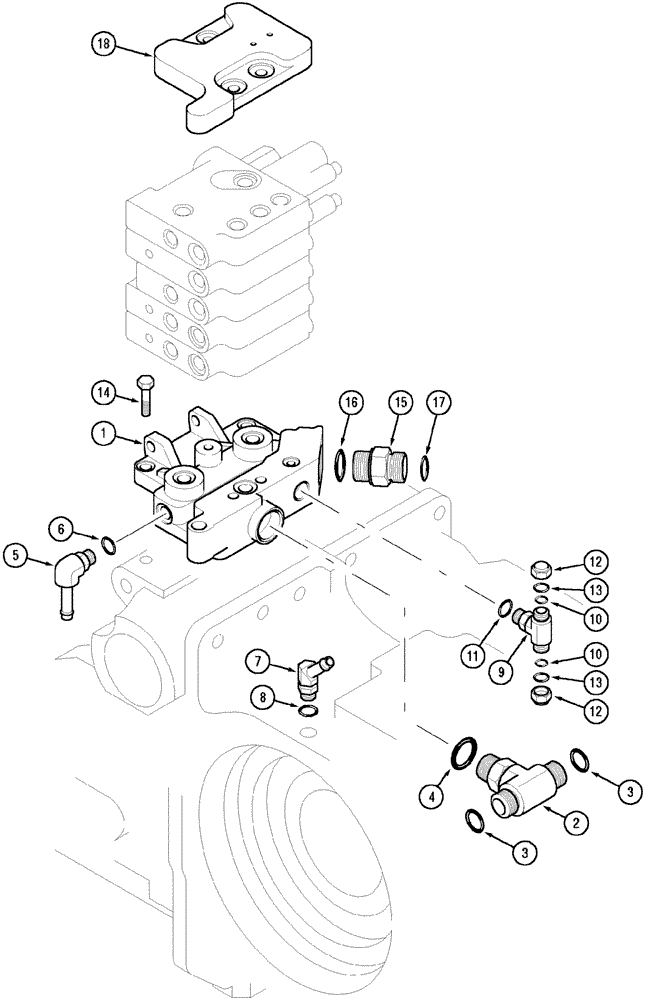

Запчасти Case IH MX90C (08-11) - INLET AND OUTLET MANIFOLD (08) - HYDRAULICS

1

199690A5

COVER

1шт.

2

700-404

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Includes: 3, 4

1шт.

4

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

5

247803A1

ELBOW

Includes: 6

1шт.

6

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

295561A1

ADAPTER

Includes: 8

1шт.

8

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

9

700-401

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Includes: 10, 11

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

701-900

CAP,11/16" - 16

Includes: 13

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

828-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

15

186657A1

VALVE, CHECK

Includes: 13, 14.

1шт.

16

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

18

G110143

COVER

1шт.

3

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
