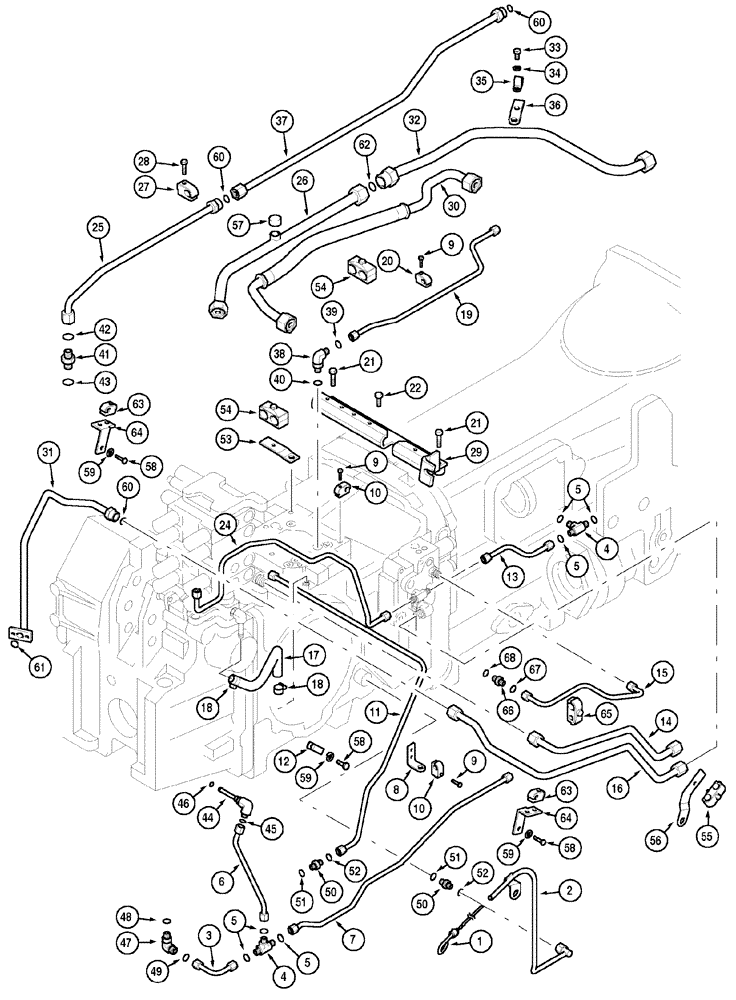

Запчасти Case IH MX90C (08-10) - EXTERNAL LUBRICATION CIRCUIT AND DIPSTICK (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1533361C1
DIPSTICK
1шт.
2
1533362C2
HYD TUBE
1шт.
3
253283A1
PIPE
P.T.O., lubrication, rear
1шт.
4
701-408
TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS
Includes: 5
2шт.
5
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
3шт.
6
293268A1
PIPE
hitch, lubrication
1шт.
7
231635A1
PIPE
P.T.O., lubrication, middle
1шт.
8
224176A1
SUPPORT
1шт.
9
614-6045
BOLT,Hex, M6 x 1 x 45mm, Cl 8.8, Full Thd
M6 x 45; 8.8
3шт.
10
T101169
CLAMP
1шт.
11
244370A3
PIPE,12 mm OD, 421, 308 mm Length
P.T.O., supply, see Figure 8-17
1шт.
11
361898A1
PIPE
P.T.O., supply, see Figure 8-17
1шт.
12
515-22127
CLAMP,1/2", Insul, 5/16" Bolt
1шт.
13
234837A2
PIPE
hitch, auxiliary
1шт.
14
252602A2
PIPE
hitch, supply
1шт.
15
252598A1
PIPE
hitch, pilot
1шт.
16
252600A2
PIPE
front, hitch
1шт.
17
295563A2
HOSE,12.7 mm ID x 220.00 mm, SAE 8 CLASS 1
bleed
1шт.
18
214-1408
HOSE CLAMP,11.2mm - 19.8mm
11/16 - 1-1/4
2шт.
19
280045A1
PIPE
shuttle, supply
1шт.
20
T101170
CLAMP
1шт.
21
814-12050
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
2шт.
22
614-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd
1шт.
24
252601A2
PIPE
auxiliary
1шт.
25
224366A1
PIPE
brake, lubrication
1шт.
26
275836A1
HYD TUBE,25 mm OD, 600, 113 mm Length
auxiliary, return, Trans No. - JKA0477385, see Figure 8-12
1шт.
26
325822A1
HYD TUBE
auxiliary, return, Trans No. JKA0477386 -, see Figure 8-12
1шт.
27
T103149
CLAMP
1шт.
28
814-6035
BOLT,Hex, M6 x 1 x 35mm, Cl 8.8
1шт.
29
388422A1
SUPPORT,380 mm Length
tube
1шт.
30
294782A1
PIPE
890 mm, auxiliary, supply
1шт.
30
280544A2
PIPE,871mm End to End, 90 Degree x 45 Degree
871 mm, auxiliary, supply
1шт.
31
255889A2
PIPE
rear, hitch
1шт.
32
313103A1
HYD TUBE
auxiliary, upper, Trans No. - JKA0477385
1шт.
32
325821A1
HYD TUBE
auxiliary, upper, Trans No. JKA0477386 -
1шт.
33
614-8012
BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd
1шт.
34
896-12012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
1шт.
35
515-22254
CLAMP,1", Insul, 5/16" Bolt
1шт.
36
314242A1
SUPPORT
1шт.
37
280396A1
PIPE
oil cooler, return
1шт.
38
700-305
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. 39, 40
1шт.
39
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
40
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
41
700-115
HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB
Incl. 42, 43
1шт.
42
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
43
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
44
284698A1
ADAPTER,60" Length
hitch, lubrication, Includes: 45, 46
1шт.
45
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
46
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
47
700-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl. 48, 49
1шт.
48
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
49
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
50
700-102
HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. 51, 52
1шт.
51
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
52
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
53
252605A1
SUPPORT
1шт.
54
252606A1
FIXING BRACKET
2шт.
55
252608A1
FIXING BRACKET
1шт.
56
252609A1
SUPPORT
1шт.
57
701-907
CAP,1-3/16" - 12
1шт.
58
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
3шт.
59
892-11008
LOCK WASHER,8mm ID
3шт.
60
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
3шт.
61
T102297
O-RING,1.78mm Thk x 15.6mm ID, 90 Duro
1шт.
63
255867A1
FIXING BRACKET
2шт.
64
255868A1
SUPPORT
2шт.
65
258153A1
FIXING BRACKET
1шт.
66
700-101
HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl. 67, 68
1шт.
67
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
68
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
62
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
Выбрано товаров: 71
