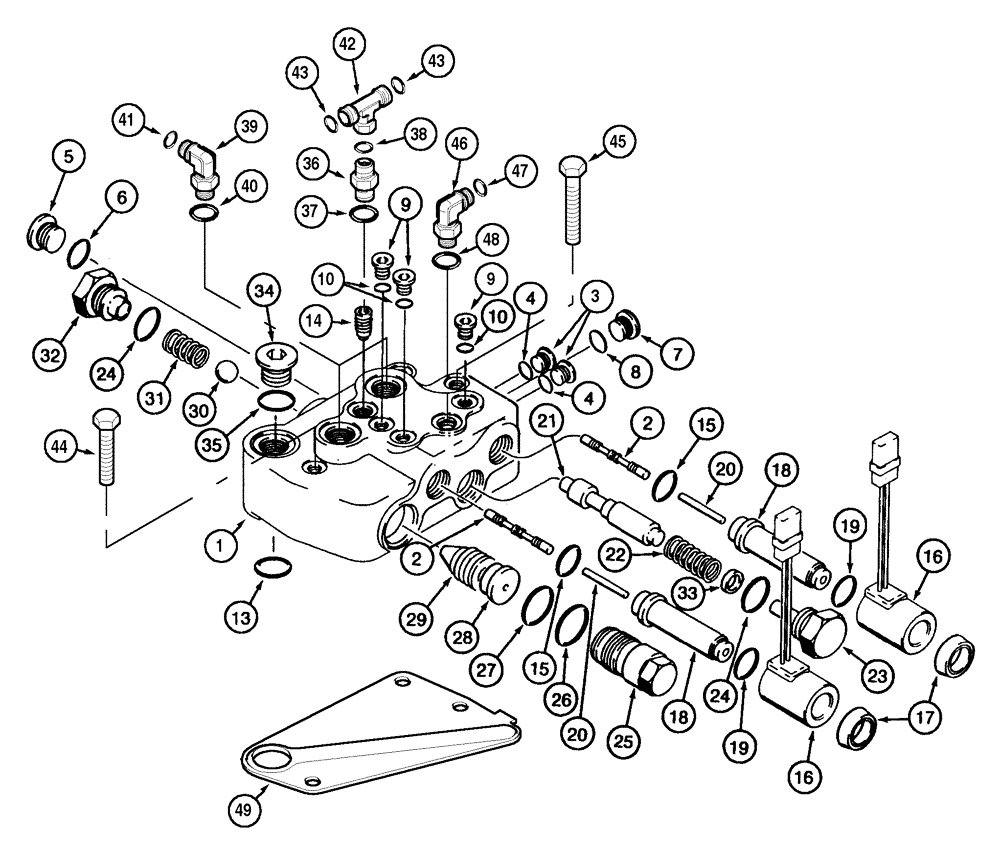

Запчасти Case IH MX90C (08-09) - HITCH VALVE ASSEMBLY (08) - HYDRAULICS

284230A1

VALVE

Consists Of 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

188104A1

SPOOL

1шт.

3

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes 4

2шт.

4

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

5

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

9625178

PLUG,9/16" - 18 ORB

Incl. 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

278548

PLUG,Hex, 7/16"-20 ORB

Incl 10

3шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

13

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

1-5/16 ID x 3/32

1шт.

14

188115A1

VALVE POPPET

1шт.

15

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

243254A1

KIT

Consists Of 16,16A,16B

2шт.

16

188105A1

SOLENOID

1шт.

16a

225318C1

ELEC CONNECTOR,2 Pin

Not Illustrated

1шт.

16b

225315C1

ELEC CONNECTOR,Male, 2 Pin

Not Illustrated

1шт.

17

188106A1

NUT

2шт.

18

188117A1

CARTRIDGE,72.25mm OAL

2шт.

19

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

20

188116A1

PIN,3.25mm OD x 39.93mm L

2шт.

21

NSS

NOT SOLD SEPARAT

Spool

1шт.

22

NSS

NOT SOLD SEPARAT

Spring

1шт.

23

188110A1

PLUG

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

304343A1

PACKAGE,SERVICE

Meter, Consists Of 25 - 29

1шт.

25

188111A1

PLUG,1-1/16" - 18

1шт.

26

238-5023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

1шт.

27

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

28

308925A1

VALVE

1шт.

29

188113A1

VALVE POPPET

1шт.

30

511-10200

BALL,20mm Dia

1шт.

31

188114A1

SPRING

1шт.

32

188107A1

PLUG

1шт.

33

NSS

NOT SOLD SEPARAT

Spacer

1шт.

34

9841223

PLUG,1-1/16" - 12 ORB

Incl. 35

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 37, 38

2шт.

37

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

38

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

39

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 40, 41

1шт.

40

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

41

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

42

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 43

1шт.

43

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

44

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

45

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

1шт.

46

700-403

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Includes 47

1шт.

47

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

48

701-906

CAP,1" - 14

16 mm

1шт.

49

303376A1

GASKET,0.92mm Thk

1шт.

243253A1

SEAL KIT

Includes 4,6,8,10,13,15,19,24,26,27,35

1шт.
