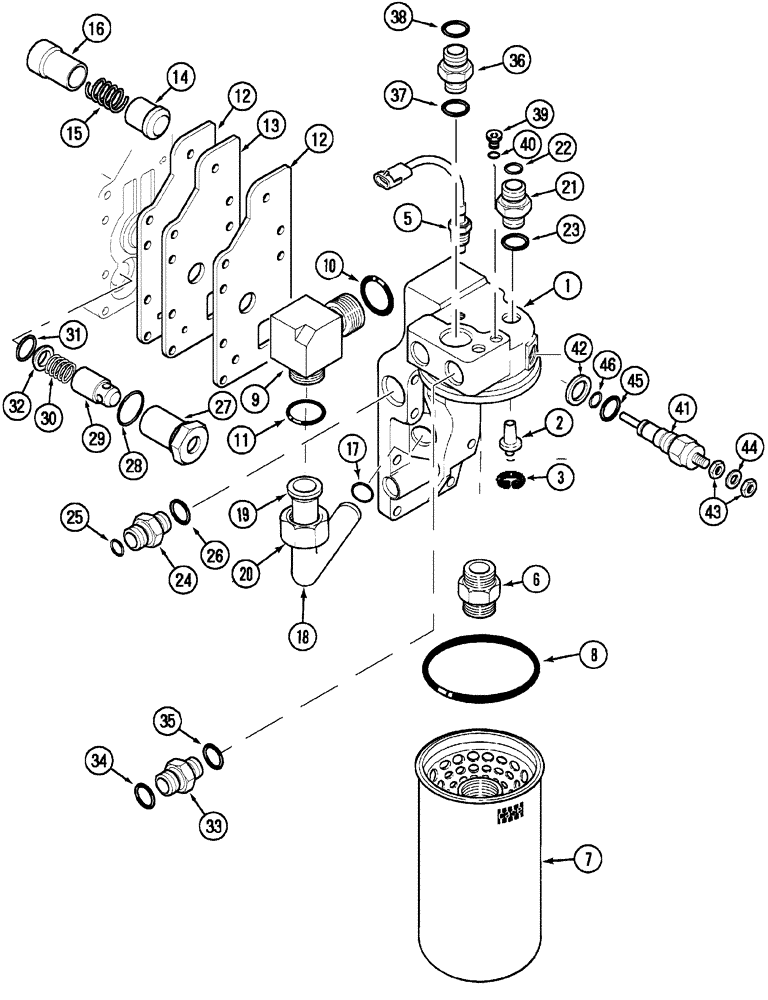

Запчасти Case IH MX90C (08-08) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

1

221013A1

FILTER HEAD

BODY serial No. - JJE1052650

1шт.

1

330170A1

FILTER HEAD

BODY serial No. JJE1052651 -

1шт.

2

1957807C1

VALVE, CHECK

1шт.

3

A177482

SNAP RING

1шт.

5

258425A1

SWITCH

serial No. - JJE1052650

1шт.

5

243803A2

TEMPERATURE SENDER,1/2" - 14

serial No. JJE1052651 -

1шт.

6

A176321

CONNECTOR, ELEC

CONNECTOR

1шт.

7

1976934C5

HYDRAULIC OIL FILTER

Includes: 8

1шт.

8

123010C3

GASKET,119.02mm ID x 128mm OD x 4.9mm Thk

1шт.

9

221057A1

ELBOW

Includes: 10

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

12

139882A2

SEAL,0.25mm Thk

2шт.

13

1340757C1

PLATE ASSY.

1шт.

14

1340805C1

PISTON

1шт.

15

1340953C1

SPRING

1шт.

16

1340806C1

CASE

1шт.

17

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

18

1980486C1

HYD TUBE,32 mm OD

Includes: 19, 20

1шт.

19

203-934

SLEEVE,ORFS, M32 x 30 Tube, Reducer

1шт.

20

203-906

TUBE NUT,1 11/16"-12 ORFS

1-1/4 in

1шт.

21

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 22, 23

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

24

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 25, 26

1шт.

25

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

26

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

107451A2

VALVE

consists of: 27 - 32

1шт.

27

NSS

NOT SOLD SEPARAT

BODY

1шт.

28

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

29

NSS

NOT SOLD SEPARAT

VALVE poppet

1шт.

30

107454A2

SPRING

1шт.

31

107452A1

CIRCLIP

1шт.

32

107456A1

CUP WASHER

1шт.

33

700-134

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

Includes: 34, 35

1шт.

34

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

35

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

36

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Includes: 37, 38

1шт.

38

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

39

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

Incl. 40

1шт.

40

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

N13268

PRESSURE SWITCH

consists of: 41 - 46

1шт.

41

NSS

NOT SOLD SEPARAT

BODY

1шт.

42

NSS

NOT SOLD SEPARAT

WASHER

1шт.

43

129-667

NUT,#10-32, LH

2шт.

44

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

46

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

37

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

45

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
