Запчасти Case IH MX90C (08-05) - HYDRAULIC OIL FILTER AND SYSTEM (08) - HYDRAULICS

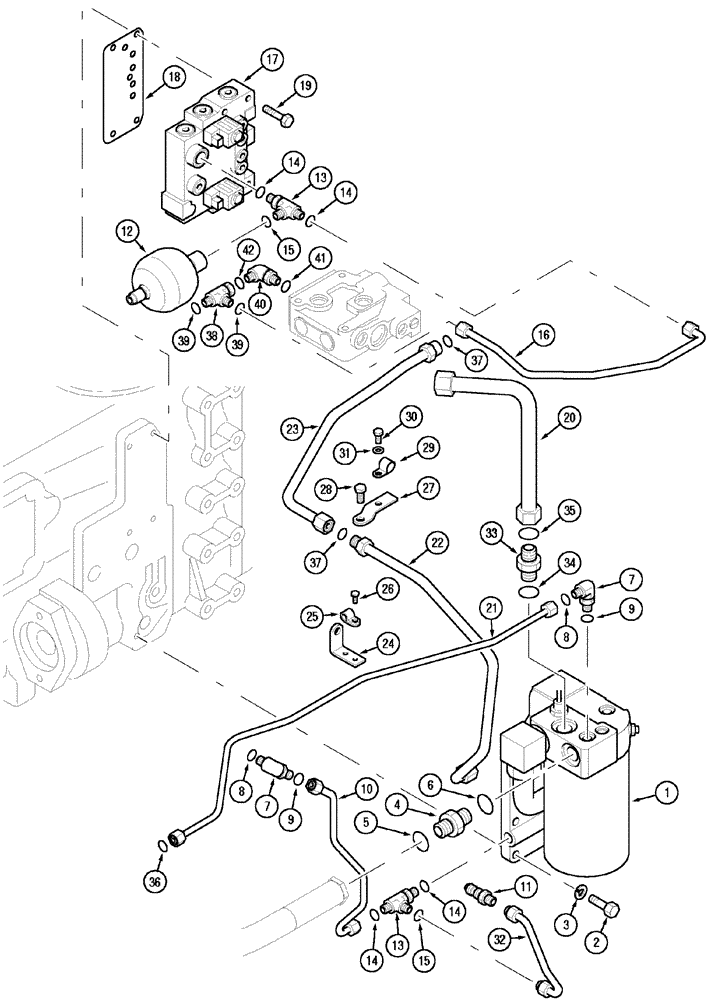

Схема запчастей Case IH MX90C - (08-05) - HYDRAULIC OIL FILTER AND SYSTEM (08) - HYDRAULICS
15
15
32
7
27
1
6
14
39
31
35
25
16
5
36
17
28
37
7
8
19
4
22
26
2
23
9
12
29
38
34
13
14
21
3
24
14
9
20
33
13
41
14
8
38
18
30
42
37
10
11
40

Артикул

Название

Примечание

Количество

1

1976934C5

HYDRAULIC OIL FILTER

see Figure 8-8

1шт.

2

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

2

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

3

892-11010

LOCK WASHER,M10

8шт.

4

700-134

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

Includes: 5, 6

1шт.

5

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

6

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

7

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 8, 9

2шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

10

252766A3

HYD TUBE,10 mm OD, 349, 133 mm Length

upper, creep speed

1шт.

11

1995465C1

UNION

1/2 x 3/4 in

1шт.

12

368341A1

ACCUMULATOR,0.48L

1шт.

13

336967A1

TEE

Includes: 14, 15

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

16

280044A1

PIPE

Powershift

1шт.

17

222656A6

VALVE, CONTROL

Powershift, see Figure 8-6

1шт.

18

B512247

SEAL,0.92mm Thk

1шт.

19

863-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

20

313106A1

PIPE

auxiliary, return

1шт.

21

231620A3

HYD TUBE

P.T.O., lubrication, Serial Range: -JJE1101024

1шт.

21

397305A1

PIPE

P.T.O., lubrication, Start Serial: JJE1101024

1шт.

22

313784A1

PIPE

oil cooler, rear

1шт.

23

280396A1

PIPE

oil cooler, front

1шт.

24

224176A1

SUPPORT

1шт.

25

T101169

CLAMP

1шт.

26

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

1шт.

27

252808A1

SUPPORT

1шт.

28

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

29

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

30

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

32

252767A1

HYD TUBE

lower, creep speed

1шт.

33

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Includes: 34, 35

1шт.

35

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

36

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

37

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

38

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 39

1шт.

39

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

40

336963A1

ELBOW

with screen, Includes: 40A, 41, 42

1шт.

40a

1980065C3

SCREEN

1шт.

41

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

42

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

34

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Выбрано товаров: 45
