Запчасти Case IH MX90C (08-01) - HYDRAULIC PUMP, OIL LINES AND FILTER (08) - HYDRAULICS

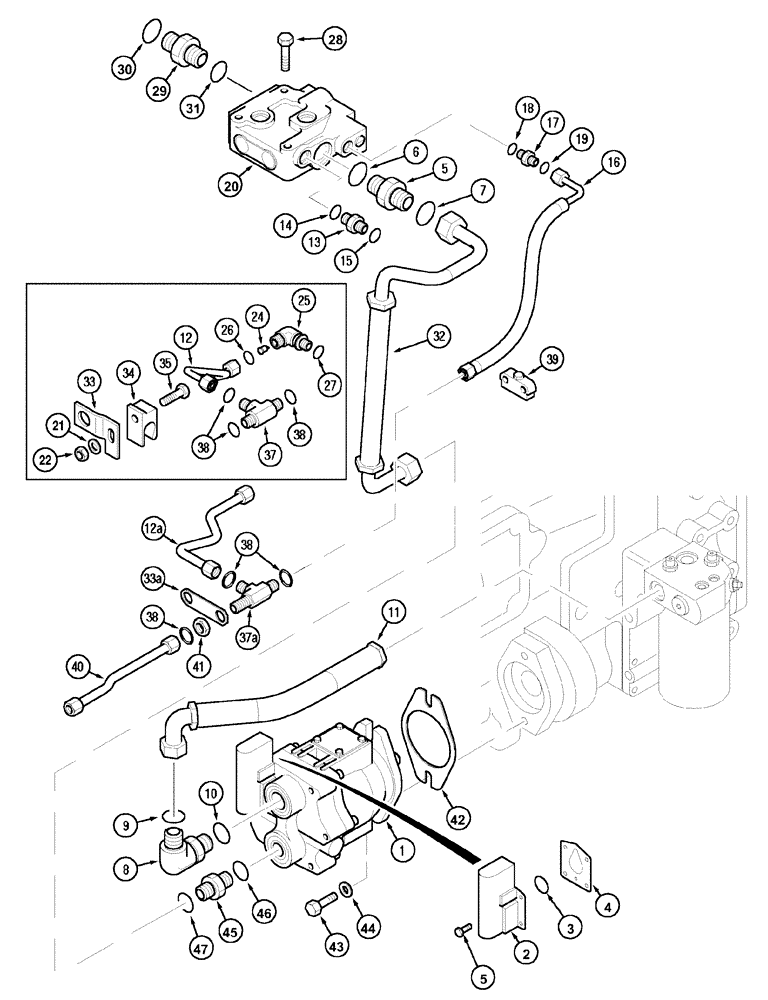

Схема запчастей Case IH MX90C - (08-01) - HYDRAULIC PUMP, OIL LINES AND FILTER (08) - HYDRAULICS
14
44
32
12a
8
5
6
33a
39
37a
43
38
45
5
26
34
19
22
33
27
10
38
47
30
9
24
31
42
11
2
21
20
38
4
1
29
25
15
37
16
28
7
41
12
35
40
46
17
13
3
18
38

Артикул

Название

Примечание

Количество

1

199142A4

PUMP, HYDRAULIC,41 CC

Includes: 2 - 5, Vickers

1шт.

199142A4R

REMAN-HYD PUMP,41 CC

MX80C, MX90C, MX100C all (1/98-)

1шт.

199142A4C

CORE-HYDRAULIC PUMP

Return Number

1шт.

Prior to Transmission S/N JKA0138096

1шт.

1

394268A1

HYDRAULIC PUMP

Rexroth

1шт.

394268A2R

REMAN-HYD PUMP,41 CC

MX80C, MX90C, MX100C, All ASN JJE1101024, Reman For New P/N 394268A1 & 394268A2

1шт.

394268A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

86983915

SEAL KIT

Control Valve

1шт.

Transmission S/N JKA0138096 and After

1шт.

2

362086A1

KIT

Compensator

1шт.

Prior to Transmission S/N JKA0138096

1шт.

2

86983917

KIT

Kit, Compensator

1шт.

Transmission S/N JKA0138096 and After

1шт.

3

238-8011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

1шт.

4

A49436

GASKET

1шт.

5

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

4шт.

6

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

7

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

8

700-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Includes: 9, 10

1шт.

9

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

10

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

11

231762A2

HOSE,31.75mm ID x 475mm L

Inlet

1шт.

Prior to Transmission S/N JKA0138096

1шт.

11

394359A1

HOSE ASSY.

1шт.

Transmission S/N JKA0138096 and After

1шт.

12

234838A1

HYD TUBE

1шт.

Prior to Transmission S/N JKA0138096

1шт.

12

432977A1

PIPE

1шт.

Transmission S/N JKA0138096 and After

1шт.

12a

338239A1

HYD TUBE,10 mm OD, 100.5, 168.5 mm Length

1шт.

Prior to Transmission S/N JKA0138096

1шт.

13

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 14, 15

1шт.

14

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

304843A2

HOSE,6.35mm ID x 407mm L

Priority Valve

1шт.

17

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 18, 19

1шт.

18

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

175642A6

VALVE

See Figure 8-7

1шт.

20

281830A2

VALVE

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

175021A1

90 ELBOW

Consists of: 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

Screen

1шт.

25

NSS

NOT SOLD SEPARAT

Elbow

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

27

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

28

828-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

3шт.

29

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Includes: 30, 31

1шт.

31

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

32

246860A1

HOSE,19.05 mm ID x 476.00 mm, SAE 100R9

Supply

1шт.

Prior to Transmission S/N JKA0138096

1шт.

32

394360A3

HOSE ASSY.

1шт.

Transmission S/N JKA0138096 and After

1шт.

33

257435A2

SUPPORT

1шт.

33a

320213A1

SUPPORT

1шт.

34

T101169

CLAMP

1шт.

35

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

37

701-408

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

1шт.

37a

701-449

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

Includes: 38

1шт.

38

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

39

258153A1

FIXING BRACKET

1шт.

40

338240A1

HYD TUBE,10 mm OD, 128, 105 mm Length

Hitch,auxiliary

1шт.

41

701-909

NUT,11/16" - 16

1шт.

42

144169C2

GASKET,0.79mm Thk

1шт.

43

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

44

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

45

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Includes: 46, 47

2шт.

46

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

30

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

47

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Выбрано товаров: 71
