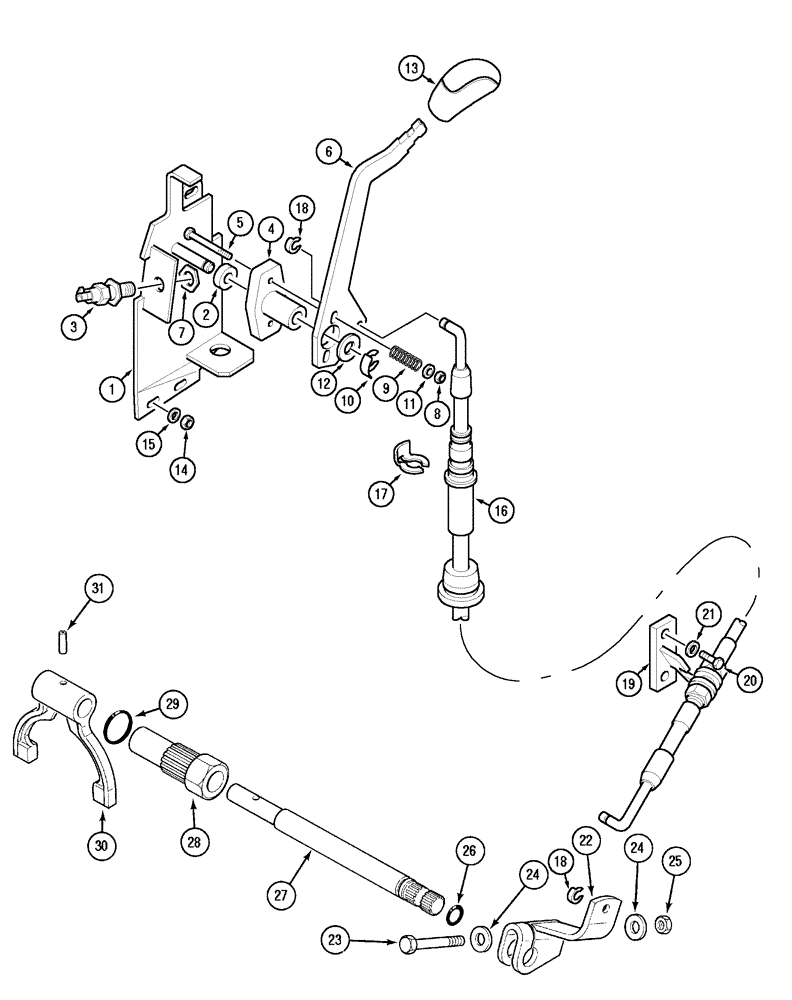

Запчасти Case IH MX90C (06-29) - P.T.O. CONTROLS SHIFTABLE, EUROPE ONLY (06) - POWER TRAIN

190944A5

SUPPORT ASSY.

consists of: 1 - 12

1шт.

1

234869A5

SUPPORT ASSY.

1шт.

2

248475A1

SPACER

1шт.

3

177499A2

LIMIT SWITCH

Plunger, Incl 7

1шт.

4

175312A1

SUPPORT

1шт.

5

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

2шт.

6

190935A3

LEVER

1шт.

7

188603A1

JAM NUT

M16

1шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

T102381

SPRING

2шт.

10

240908A1

CLIP,ELECTRICAL

1шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

13

177108A1

GRIP

1шт.

14

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

220848A5

CABLE ASSY.,1300.5mm L

1шт.

17

3223258R2

CIRCLIP

1шт.

18

800-436

CIRCLIP,M6

2шт.

19

245038A2

SUPPORT

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

22

220510A1

LEVER

1шт.

23

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

24

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

25

829-1412

NUT,M12, Cl 10.9

1шт.

26

638-52150

O-RING,1.8mm Thk x 15mm ID, Cl 5, 75 Duro

1шт.

27

1341108C1

SHAFT

1шт.

28

1341107C1

TRANSMISSION SLEEVE

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

30

A183464

SHIFTER FORK

1шт.

31

38-31216

PIN,3/16" x 1", Coiled

1шт.
