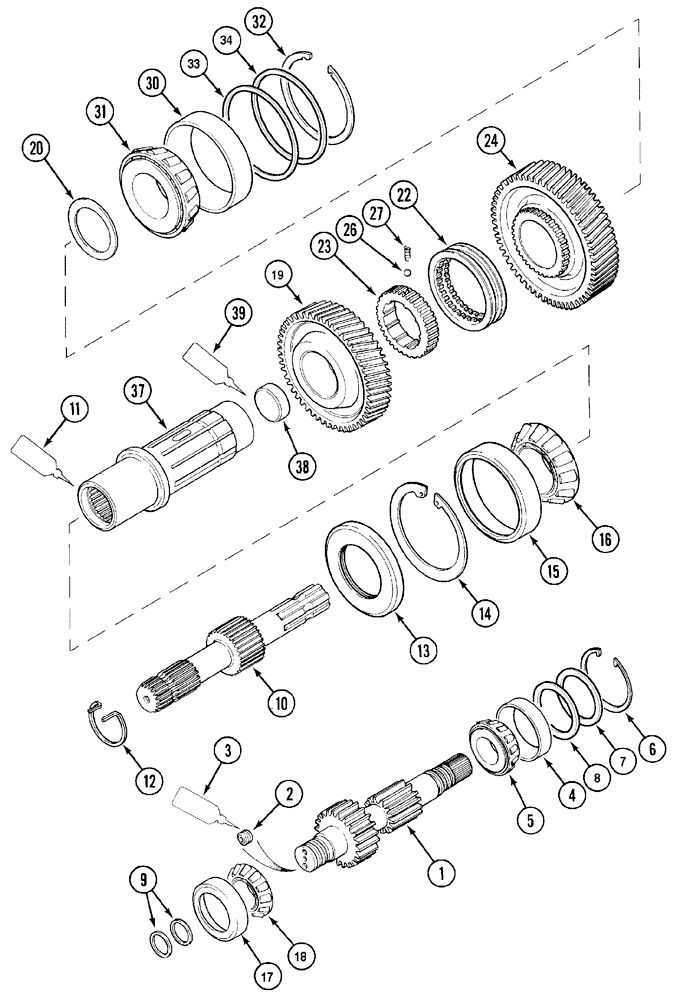

Запчасти Case IH MX90C (06-27) - P.T.O. SHIFTABLE 630/1000 R.P.M., EUROPE ONLY (06) - POWER TRAIN

1

1341277C3

SHAFT

Includes: 2, 3

1шт.

2

83-3314

SET SCREW,Hex Soc, 5/16"-18 x 1/4"

1шт.

3

B17197

LOCTITE

50 ml

1шт.

4

50213V

BEARING CUP

2-3/4 OD

1шт.

5

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

1-5/16 ID

1шт.

6

1345617C1

SNAP RING

2.00 mm

1шт.

7

236204A1

SHIM,0.15mm Thk

1шт.

7

236205A1

SHIM,0.25mm Thk

1шт.

7

236206A1

SHIM,0.30mm Thk

1шт.

7

236207A1

SHIM,0.40mm Thk

1шт.

7

236208A1

SHIM,0.50mm Thk

1шт.

8

236199A1

WASHER

1шт.

9

A188295

SEALING RING,28.48mm ID x 31.8mm OD x 2.38mm Thk

SEALRING

2шт.

10

226823A1

SHAFT

1шт.

11

331-58

LUBRICANT

1 oz.

1шт.

12

1341137C1

CIRCLIP

1шт.

13

A175136

OIL SEAL,66.63mm ID x 111.2mm OD x 11.38mm Thk

1шт.

14

100-21433

SNAP RING,4.331", Int, #433

1шт.

15

29214H

BEARING CUP,110mm OD x 18.82mm W

4-5/16 OD

1шт.

16

102161H

BEARING ASSY,68.262mm ID x 21.996mm

1шт.

17

671033R1

BEARING, CUP

1шт.

18

671032R1

TAPERED BEARING,33.34mm ID x 22.33mm W

1шт.

19

1341297C3

PINION

52T

1шт.

20

1341177C1

THRUST WASHER

1шт.

22

A188916

COLLAR

1шт.

23

1341298C1

COLLAR

1шт.

24

1341296C3

PINION

52T

1шт.

26

211-1008

BALL,1/4" Dia

24, CRS

2шт.

27

A188466

SPRING

2шт.

30

659459R1

BEARING, CUP

1шт.

31

158359C91

ROLLER BEARING,57.15mm ID x 21mm W

1шт.

32

297094A1

CIRCLIP

2.00 mm

1шт.

33

236198A1

WASHER

1шт.

34

236200A1

SHIM,0.10mm Thk

1шт.

34

236201A1

SHIM,0.20mm Thk

1шт.

34

236202A1

SHIM,0.30mm Thk

1шт.

34

236203A1

SHIM,0.40mm Thk

1шт.

37

1341299C2

SHAFT

Includes: 38, 39

1шт.

38

41-1624

PLUG,Cup, 1 1/2", Stainless

38 mm

1шт.

39

B17197

LOCTITE

50 ml

1шт.
