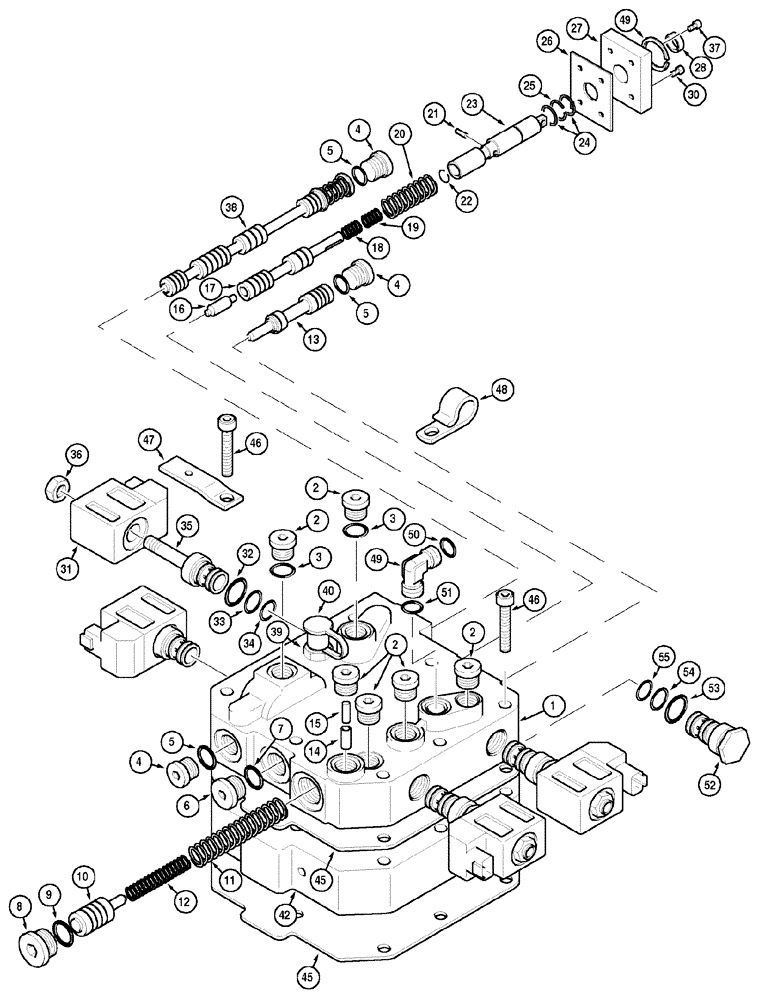

Запчасти Case IH MX90C (06-18) - FORWARD / NEUTRAL / REVERSE SHUTTLE VALVE (06) - POWER TRAIN

176304A5

VALVE, CONTROL

MFD, consists of: 1 - 40

1шт.

179822A5

VALVE, CONTROL

consists of: 1 - 40, 52 - 55

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Includes 3

6шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 5

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

86625138

PLUG,7/18" - 14

Includes Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

9841223

PLUG,1-1/16" - 12 ORB

Incl. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

110384A1

PISTON

1шт.

11

110385A1

VALVE SPRING

1шт.

12

110386A2

VALVE SPRING,13.18mm

1шт.

13

144526A3

SPOOL

1шт.

14

112922A1

PLUG

1шт.

15

838-4816

COTTER PIN,M8 x 16, Slotted

1шт.

16

132558A1

PIN

1шт.

17

229665A2

SPOOL

1шт.

18

193884A1

SPRING

1шт.

19

193885A1

SPRING

1шт.

20

110392A1

VALVE SPRING,20.57mm OD

1шт.

21

121857A1

PIN,3.1mm x 11.5mm

1шт.

22

176387A1

CIRCLIP,12.25mm

1шт.

23

177326A1

THREADED ROD

1шт.

24

110397A1

WASHER

2шт.

25

100-1862

SNAP RING,#62, Ext

1шт.

26

176380A1

GASKET,0.91mm Thk

1шт.

281235A1

COVER

consists of: 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

COVER

1шт.

28

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

1шт.

29

239-5022

O-RING,Square, 0.062" Thk x 1" ID, -22, Cl 5, 75 Duro

1шт.

30

877-30630

SET SCREW,Hex Skt, M6 x 30mm, Flat Pt

2шт.

31

349295A1

SOLENOID VALVE

Includes: 32 - 36

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

34

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

35

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

36

349292A1

JAM NUT,Hex, 1/2" - 2, RH Thd

1шт.

37

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

2шт.

38

229680A1

SPOOL

1шт.

39

178889A1

DIAGNOSTIC COUPLER

Includes: 40

1шт.

40

H434163

DUST CAP

1шт.

42

199054A3

PLATE

1шт.

45

258697A2

GASKET,0.92mm Thk

2шт.

46

828-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

8шт.

47

252605A1

SUPPORT

1шт.

48

516-23190

CLAMP,J, 3/4", Insul, 3/8" Bolt

2шт.

49

336963A1

ELBOW

with screen, Includes: 49A, 50, 51

1шт.

49a

1980065C3

SCREEN

1шт.

50

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

51

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

52

177120A1

PLUG

1шт.

53

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

54

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

55

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.
