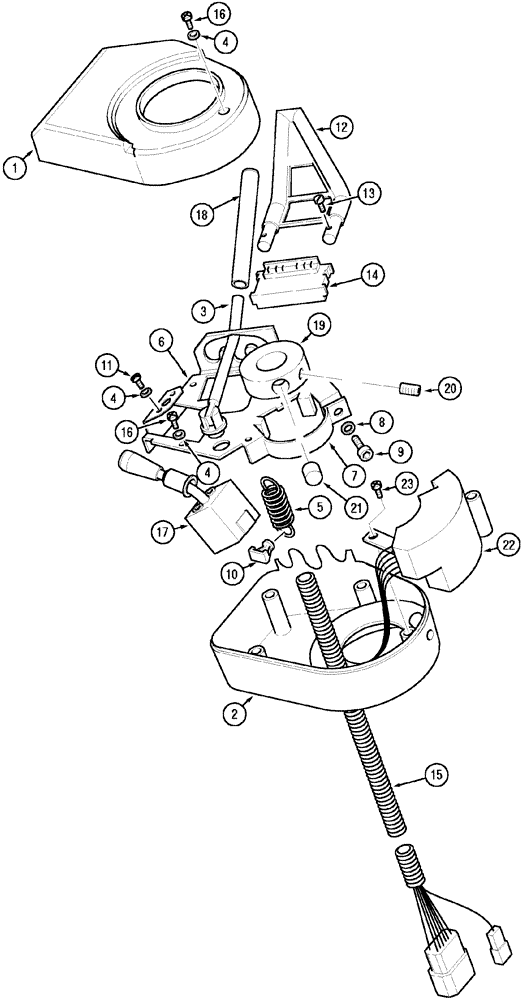

Запчасти Case IH MX90C (06-17) - FORWARD / NEUTRAL / REVERSE CONTROLS (06) - POWER TRAIN

251136A4

LEVER ASSY.

manual control, consists of: 1 - 17A, 18

1шт.

253678A4

LEVER ASSY.

automatic return, consists of: 1 - 16, 17B - 23

1шт.

1

130483A2

COVER

1шт.

2

130484A2

COVER

1шт.

3

144629A2

LEVER ASSY.

For round shaped knob (ref 18)

1шт.

3

341303A2

LEVER ASSY.

For paddle shaped knob (ref 18)

1шт.

800-438

CIRCLIP,M8

1шт.

4

892-11004

LOCK WASHER,M4

6шт.

5

250939A1

SPRING

1шт.

144626A3

SUPPORT ASSY.

consists of: 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

7

144628A1

SUPPORT

1шт.

8

893-16005

LOCK WASHER,Int Tooth, M5

1шт.

9

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

10

241096A1

PLASTIC RING

1шт.

11

840-146

SCREW,Pan, M4 x 6mm, Cl 4.8

CL 4.8

2шт.

12

144625A1

PROTECTOR

1шт.

13

905974R1

SELF-TAP SCREW,Pan Hd, M2.9 x 13

2шт.

14

144631A1

TOGGLE SWITCH

1шт.

14

390854A1

SWITCH

with safety element

1шт.

15

302886A1

CABLE ASSY.

1шт.

16

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

4шт.

17a

223958A2

FLASHER SWITCH

turn signal

1шт.

17b

246625A2

FLASHER SWITCH

turn signal, automatic return

1шт.

18

1981858C1

HANDLE

Round shaped

1шт.

18

325533A1

HANDLE

Paddle shaped

1шт.

19

253679A1

RING

magnetic, turn signal, Includes: 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

SETSCREW

1шт.

21

NSS

NOT SOLD SEPARAT

MAGNET

3шт.

22

302885A1

SENSOR

1шт.

23

760-14395

SELF-TAP SCREW,Pan Hd, M4.2 x 9.5

1шт.
