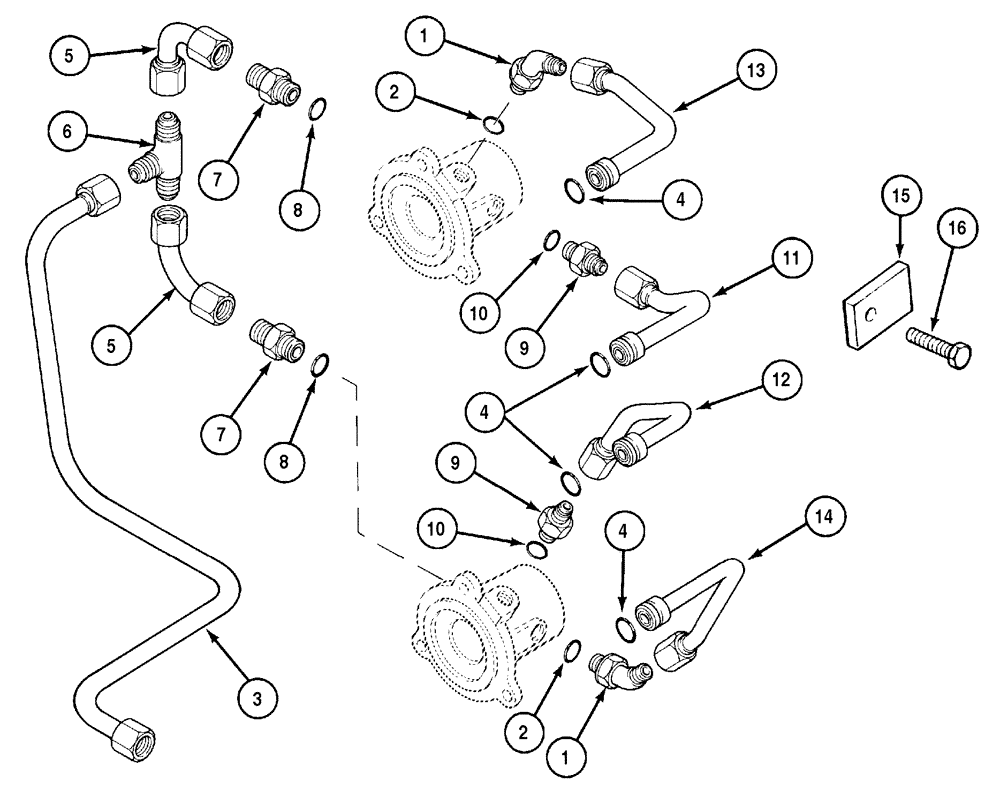

Запчасти Case IH MX90C (06-16) - POWERSHIFT TUBES (06) - POWER TRAIN

1

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 2

2шт.

3

A186421

TUBE

1шт.

4

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

4шт.

5

A175947

TUBE

2шт.

6

218-594

TEE,3/4"-16, 37 Degree

1шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 8

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 10

2шт.

11

1995043C1

PIPE

clutch 1

1шт.

12

1995045C1

PIPE

clutch 2

1шт.

13

1995047C1

PIPE

clutch 3

1шт.

14

1995049C1

PIPE

clutch 4

1шт.

15

1997126C1

RETAINER

2шт.

16

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
