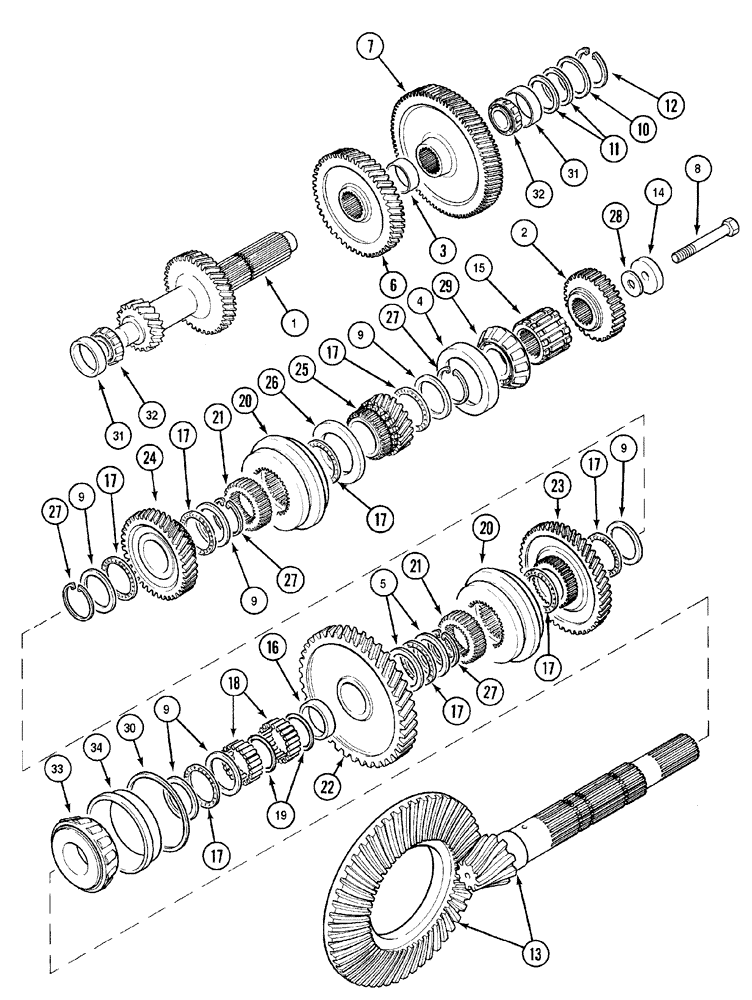

Запчасти Case IH MX90C (06-08) - TRANSMISSION RANGE, SHAFT AND GEARS (06) - POWER TRAIN

1

398009A1

SHAFT

intermediate, drive, with 1st and 2nd gear

1шт.

2

284538A1

PINION

24T, 4WD, see Figure 6-32

1шт.

3

A190327

SPACER

1шт.

4

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

1шт.

5

921272C1

THRUST WASHER

1.562 mm

2шт.

6

114274A1

PINION

49T, 3rd gear, drive

1шт.

7

1995262C1

PINION

83T, 4th gear, drive

1шт.

8

826-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

1шт.

9

A150067

WASHER, THRUST,57.33mm ID x 75.7mm OD x 3.16mm Thk

3.12/3.2 mm

6шт.

10

A175419

BUSHING,54mm ID x 64.67mm OD x 3.52mm L

1шт.

11

K915558

SHIM,53.98mm ID x 64.29mm OD x 0.08mm Thk

1шт.

11

K915559

SHIM,53.98mm ID x 64.29mm OD x 0.13mm Thk

1шт.

11

A175453

SHIM,0.178mm Thk

1шт.

11

A175454

SHIM,54mm ID x 64.67mm OD x 0.5mm Thk

1шт.

12

100-21256

SNAP RING,2.562", Int, #256

1шт.

13

1341189C4

GEAR, BEVEL

BEVEL GEAR 9/55T, see Figure 6-10, inc. 33, 34

1шт.

14

A188584

WASHER, THRUST

1шт.

15

A186391

HUB

1шт.

16

1345645C1

SPACER

10.24 mm

1шт.

17

K620185

THRUST BEARING

8шт.

2707624R91

NEEDLE BEARING

Includes: 18, 19

1шт.

18

1341221C1

NEEDLE BEARING,Needle, 5.14mm OD x 24.64mm L

76шт.

19

NSS

NOT SOLD SEPARAT

SPACER

2шт.

20

1345825C2

SYNCHRONIZER

2шт.

21

1341047C1

SYNCHRO BODY

2шт.

22

1345850C1

PINION

52T / 67.3 mm ID, 1st gear, driven

1шт.

23

398008A1

PINION

49T, 2nd gear, driven

1шт.

24

114275A1

PINION

40T, 3rd gear, driven

1шт.

25

1995263C1

PINION

34T, 4th gear, driven

1шт.

26

A183747

WASHER, THRUST,83.05mm ID x 105mm OD x 4.49mm Thk

1шт.

27

101-11225

SNAP RING,#225, Ext

4шт.

28

A188344

SHIM,17.11mm ID x 41mm OD x 0.05mm Thk

1шт.

28

A186916

SHIM,17.11mm ID x 41mm OD x 0.08mm Thk

1шт.

28

A188345

SHIM,17.11mm ID x 41mm OD x 0.13mm Thk

1шт.

28

A186917

SHIM,17.11mm ID x 41mm OD x 0.31mm Thk

1шт.

28

A186918

SHIM,17.11mm ID x 41mm OD x 1.02mm Thk

1шт.

29

615427C91

ROLLER BEARING,47.63mm ID x 30.25mm W

1шт.

30

A188020

SHIM,130.75mm ID x 139mm OD x 0.09mm Thk

1шт.

30

A188021

SHIM,130.75mm ID x 139mm OD x 0.2mm Thk

1шт.

30

A188022

SHIM,130.75mm ID x 139mm OD x 0.28mm Thk

1шт.

30

A188023

SHIM,130.75mm ID x 139mm OD x 0.55mm Thk

1шт.

31

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2-1/2 OD

2шт.

32

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1-3/8 ID

2шт.

A190455

BEARING ASSY,63.5mm ID x 138.25mm OD x 36.54mm W

consists of: 33, 34

1шт.

33

NSS

NOT SOLD SEPARAT

CONE ASSY.

1шт.

34

NSS

NOT SOLD SEPARAT

BEARING, CUP

1шт.
