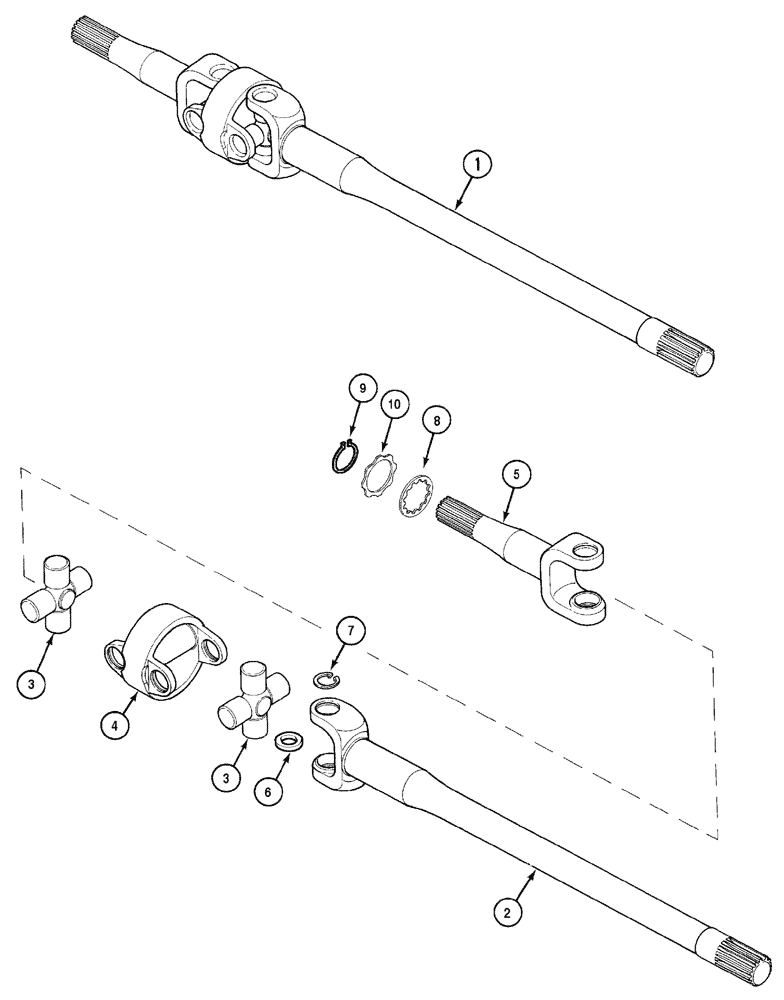

Запчасти Case IH MX90C (05-21) - DRIVE SHAFT, MX90C, MX100C : 20:19 (05) - STEERING

319758A3

SHAFT ASSY.

drive, Includes: 1, 8 - 10

2шт.

319758A3R

REMAN-GEAR

MX90C, MX100C

2шт.

319758A3C

CORE-GEAR

Return Number

2шт.

319759A3

SERVICE KIT

side, drive shaft, consists of: 5, 8 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT ASSY.

1шт.

2

247541A1

SHAFT

differential

1шт.

3

247543A1

U-JOINT SPIDER

2шт.

4

195213A1

BODY

1шт.

5

366946A1

DRIVE SHAFT

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL

8шт.

7

NSS

NOT SOLD SEPARAT

CLIP

8шт.

8

100550A2

THRUST WASHER

44.1 X 52 X 2.5 if so equipped

1шт.

8

365752A1

THRUST WASHER

44.6 X 52 X 4

1шт.

9

247554A1

THRUST WASHER

45.3 X 60 X 2.5

2шт.

10

800-5145

SNAP RING,M45, Ext

If so equipped

1шт.

10

365753A1

RING, SNAP

M44.5 . Ext

1шт.
