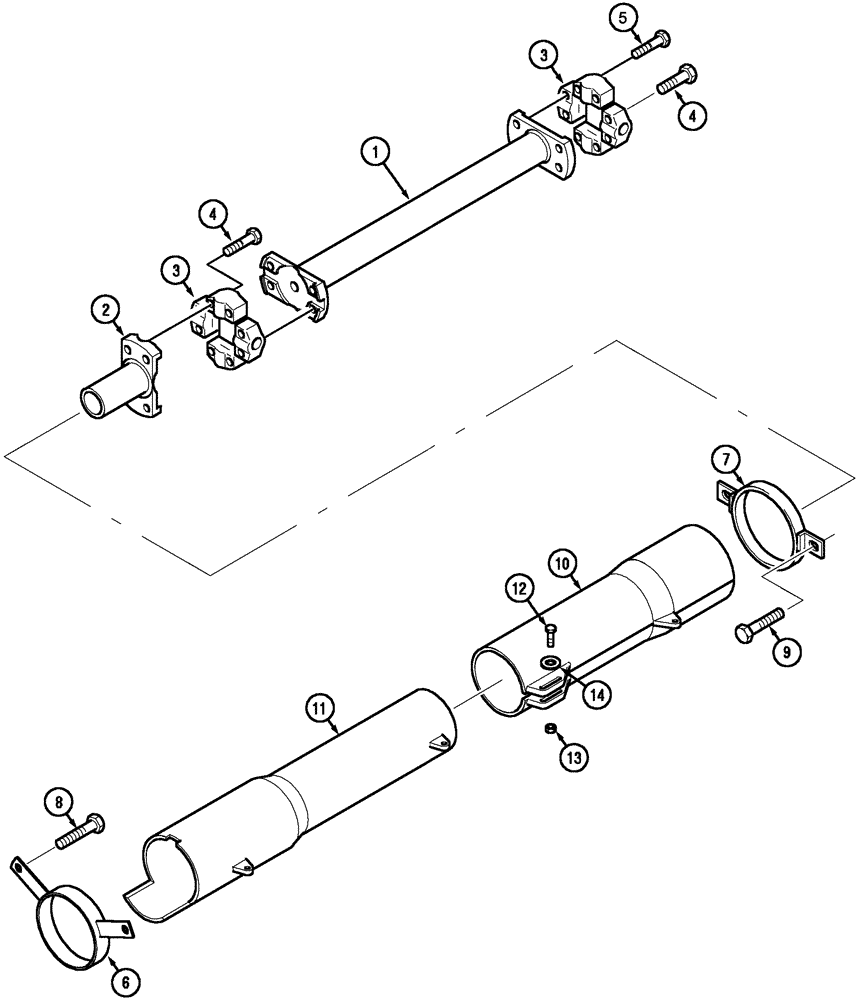

Запчасти Case IH MX90C (05-12) - DRIVE SHAFT AND SHIELD (05) - STEERING

282240A2

DRIVE SHAFT

consists of: 1 - 4

1шт.

1

394124A1

DRIVE SHAFT

1шт.

2

394126A1

CLEVIS

1шт.

3

394125A1

U-JOINT SPIDER

2шт.

3

84355373

SPIDER,36.6mm Bolt Distance, 70mm Cap Distance, Grease-able

Does Not Include Ref. 4

2шт.

4

NSS

NOT SOLD SEPARAT

CAPSCREW, .312 - 24 UNF - 3A

16шт.

5

379-2524

12 PT SCREW,Flg, 5/16" - 24 x 1 1/2"

5/16-24 x 1-1/2 in

4шт.

6

329106A1

SUPPORT

rear

1шт.

7

283020A2

SUPPORT

front

1шт.

8

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

9

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

10

377697A1

SHIELD

front

1шт.

11

283017A4

SHIELD

rear

1шт.

12

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

3шт.

13

832-10406

NUT,M6 x 1, Cl 8

3шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.
