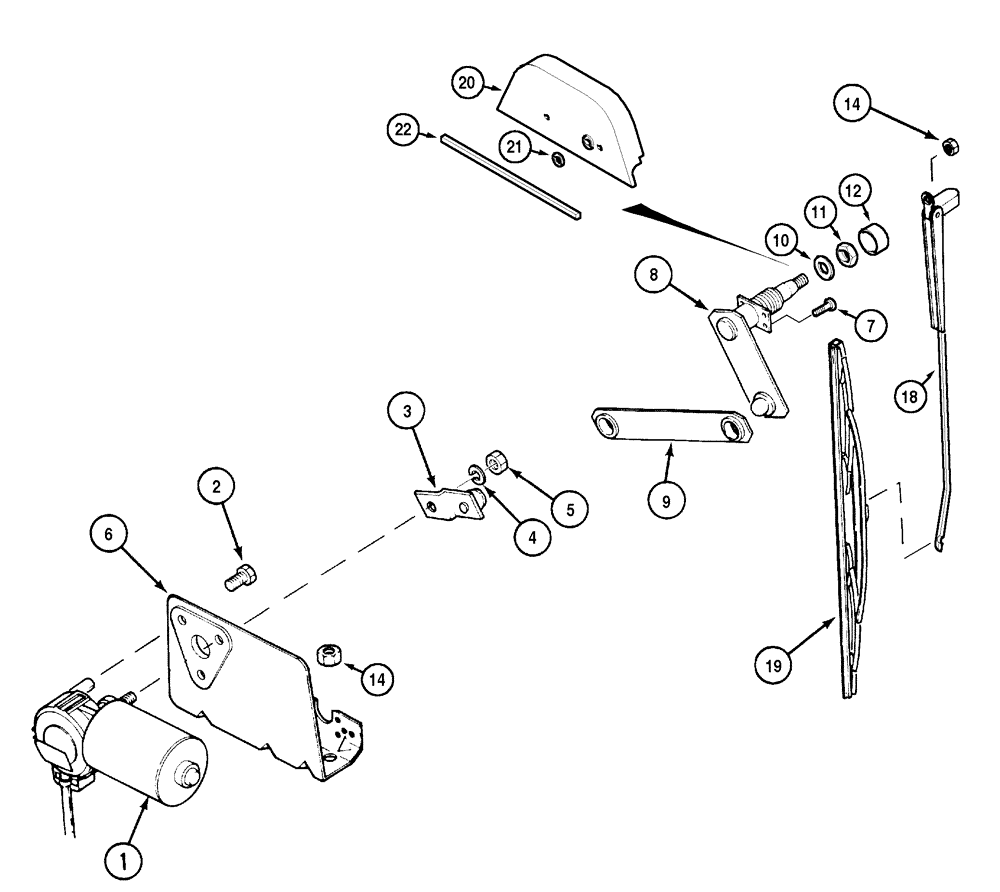

Запчасти Case IH MX80C (04-30) - WINDSCREEN WIPER - FRONT (04) - ELECTRICAL SYSTEMS

1

A186256

WIPER MOTOR,12V

12V

1шт.

1a

367428A1

WIPER MOTOR

MOTOR, WIPER doga

1шт.

2

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

3шт.

3

N8360

SUPPORT

1шт.

4

N14111

WASHER

1шт.

5

825-1408

NUT,M8, Cl 8

1шт.

6

N8359

SUPPORT

1шт.

7

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

4шт.

8

N14112

SHAFT

1шт.

9

N8358

LINK

1шт.

10

L112088

WASHER

1шт.

11

L112087

NUT

1шт.

12

L112081

CAP

1шт.

12a

111109A1

CAP

doga

1шт.

13

L112089

WASHER

1шт.

14

825-1408

NUT,M8, Cl 8

1шт.

18

236195A1

WIPER ARM

ARM, WIPER bosch

1шт.

18a

367429A1

WIPER ARM

ARM, WIPER doga, 425 mm

1шт.

19

236194A1

WIPER BLADE

BLADE, WIPER bosch

1шт.

19a

367430A1

WIPER BLADE

BLADE, WIPER doga

1шт.

229603A2

PROTECTOR

consists of: 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

PANEL

1шт.

21

229601A1

WIPER SEAL

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL, cut from 230028A1

1шт.

23

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

24

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

230028A1

WIPER SEAL

15 m, bulk length

1шт.
