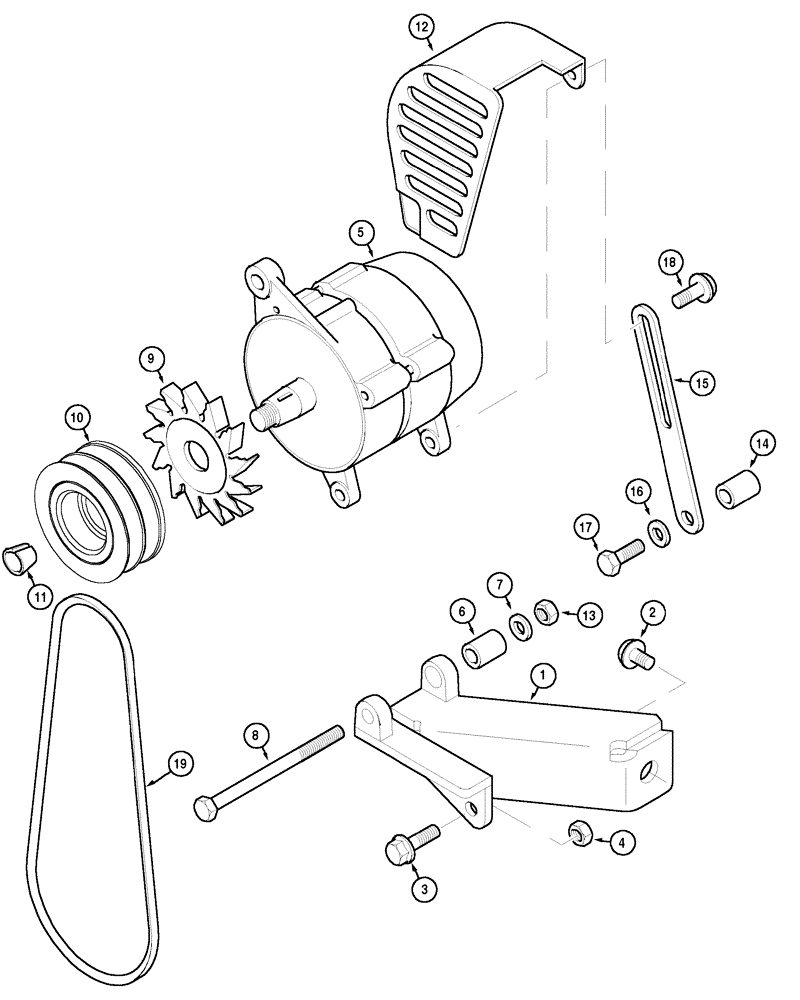

Запчасти Case IH MX80C (04-18) - ALTERNATOR AND MOUNTING (04) - ELECTRICAL SYSTEMS

364821A1

SUPPORT

consists of: 1, 6

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

2

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

3

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

5

A187623

ALTERNATOR

14V, 95A, see Figure 4-20

1шт.

5

AR187623

REMAN-ALTERNATOR

Reman for New P/N A187623

1шт.

5

AC187623

CORE-ALTERNATOR

Return Part Number

1шт.

5

A187623GV

ALTERNATOR

Value, 14V, 95A

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER

1шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

9

221425R1

FAN

1шт.

10

303450A2

PULLEY

1шт.

11

J908563

RETAINER

1шт.

12

310548A1

GUARD

1шт.

13

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

14

300478A1

SPACER

1шт.

15

300477A1

TENSIONER

140 mm

1шт.

15

250840A1

TENSIONER

114 mm

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

17

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

18

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

19

241895A2

SET OF BELTS,10.00 mm W x 1452.00 mm L

1шт.
